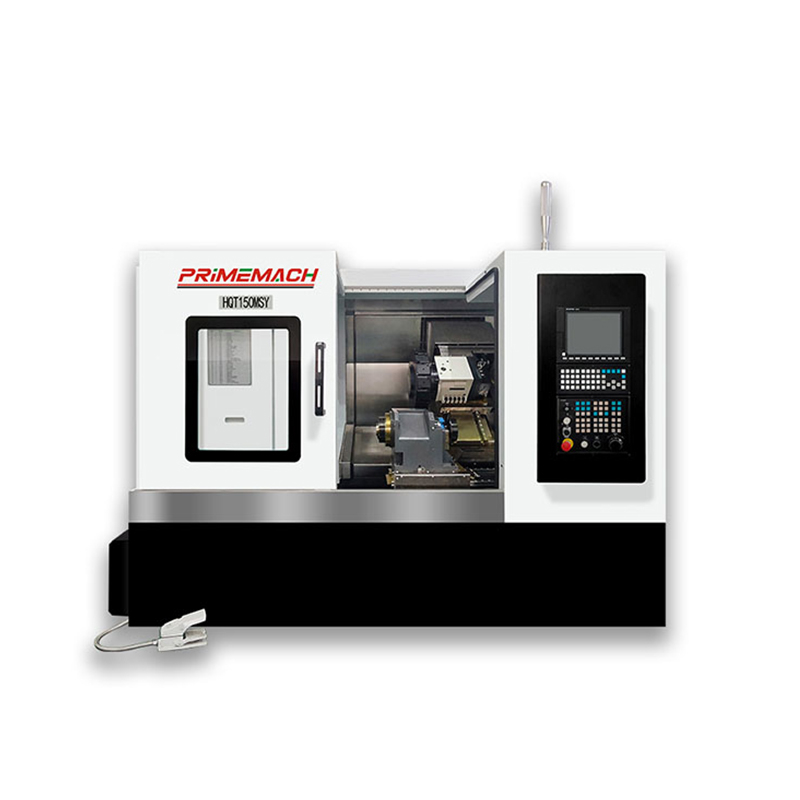

Twin-Spindle CNC Mill-Turn Machine for Precision Part Machining

Product Overview

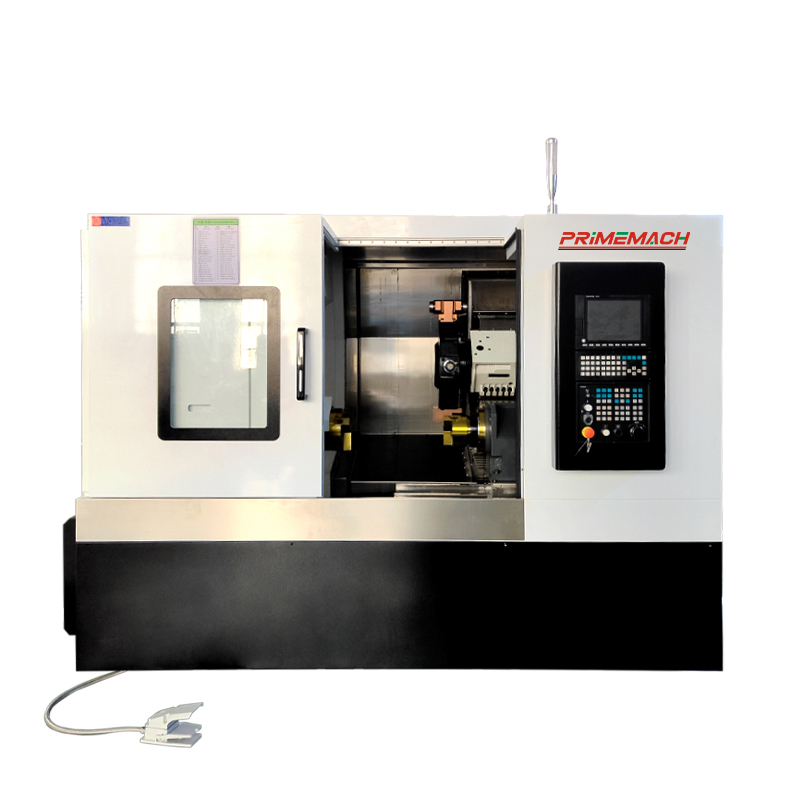

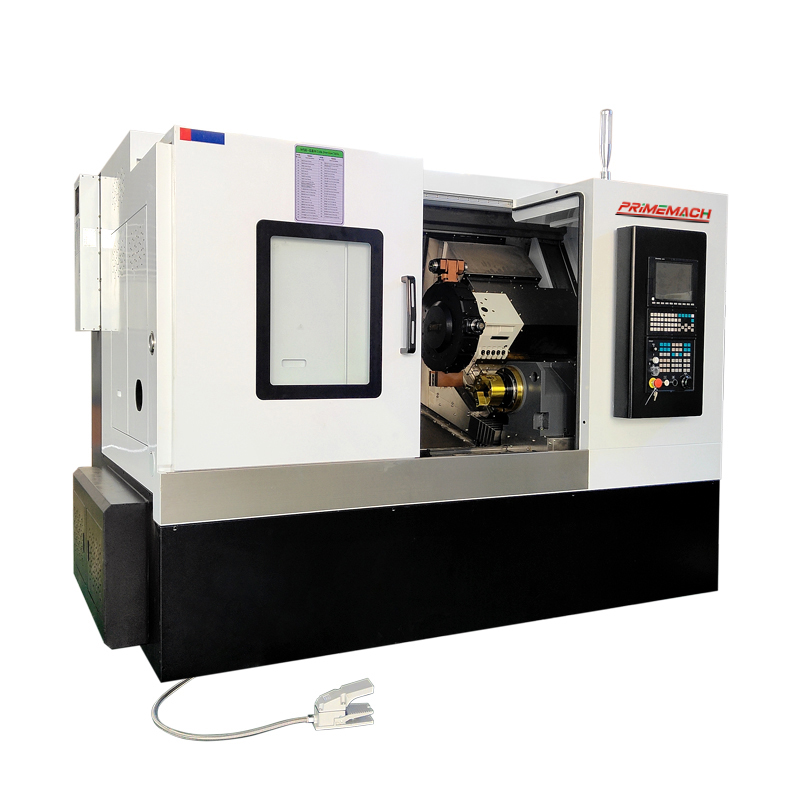

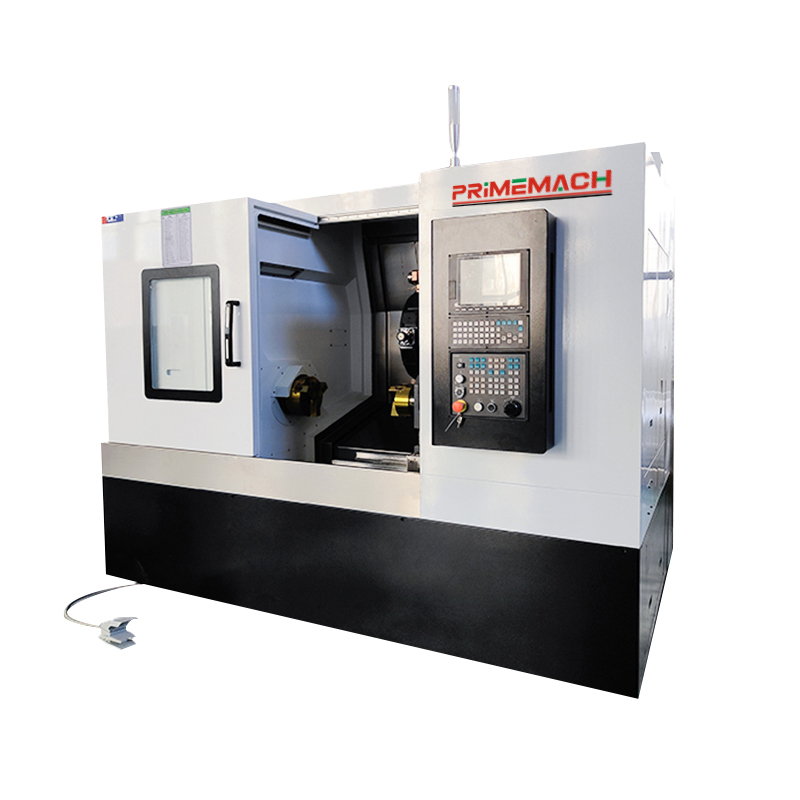

The 16-Station Electric Spindles CNC Mill-Turn stands as a high-performance solution engineered for precision manufacturing, leveraging advanced technology to handle complex machining tasks with unparalleled accuracy. Equipped with the FANUC Oi-TF CNC Control System—a cornerstone of reliability in industrial automation—this machine excels in producing intricate components across aerospace, medical, and automotive sectors. Its robust design supports a maximum swing diameter of Ø 600 mm and a main spindle machining capacity of Ø 320 mm, making it versatile for both large workpieces and detailed parts. With dual spindles (main and sub) operating at 4500 RPM, paired with a 16-station turret, it eliminates the need for multiple setups, streamlining production and reducing cycle times. Whether tackling long turning lengths (up to 510 mm + 40 mm with back tooling) or precise milling operations (up to 550 mm), this machine delivers consistent performance for high-volume and high-precision applications.

Product Specifications

CNC Control & Core Capabilities

· CNC Control System: FANUC Oi-TF—ensures seamless synchronization of spindle movements, tool changes, and axis travel for error-free operation.

· Max. Swing Diameter: Ø 600 mm—accommodates large workpieces with stability.

· Main Spindle Max. Machining Diameter: Ø 320 mm—ideal for heavy-duty turning tasks.

· Sub-Spindle Machining Diameter: Ø 250 mm—supports secondary operations without repositioning.

Spindle Performance

· Spindle Speed (Main/Sub): 4500 RPM—balances speed and precision for diverse materials.

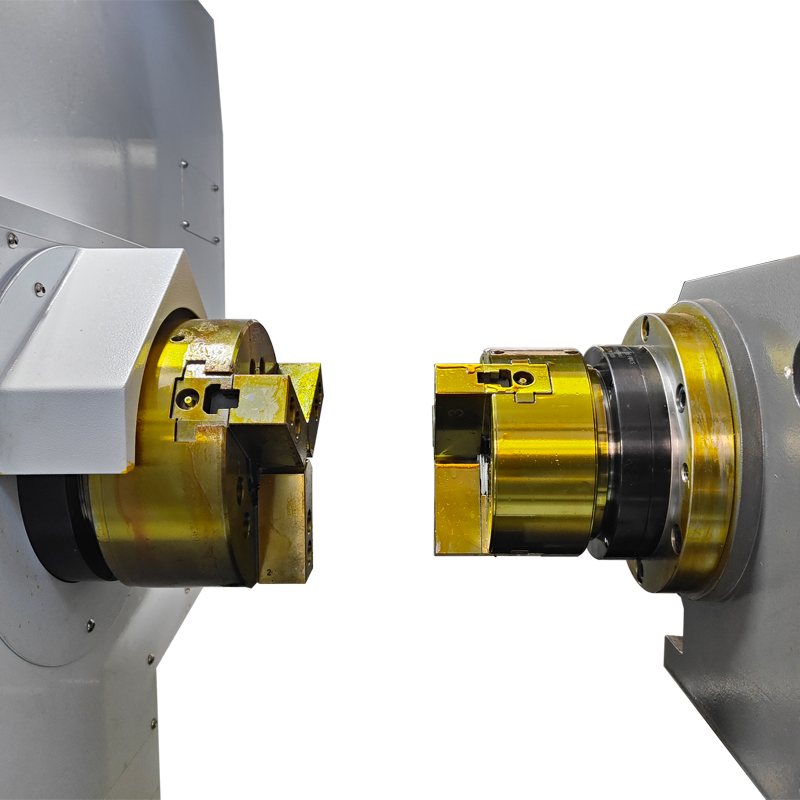

· Spindle Specifications: Main spindle (A2-6) and sub-spindle (A2-5) electric spindles—designed for minimal vibration and long-term reliability.

· Spindle Bore Diameter: 52 mm (Main) / 40 mm (Sub)—facilitates efficient material feeding and chip evacuation.

· Chuck Size: 8″ (Main) / 6″ (Sub) hollow chucks—securely grip workpieces during high-speed rotation.

Axis Travel & Feed Rates

· X-axis Max. Travel: 260 mm—supports lateral precision for detailed cuts.

· Y-axis Max. Travel: ±60 mm—enables complex contouring and multi-angle machining.

· Z1 (Main Spindle) / Z2 (Sub-Spindle) Max. Travel: 620 mm / 500 mm—covers extensive longitudinal machining ranges.

· Rapid Traverse Speed (X/Z-axis): 24 m/min—reduces non-cutting time for enhanced productivity.

Turret & Tooling

· Number of Tool Positions: 16 stations—accommodates a wide range of tools for continuous machining.

· External Tool Holder Height: 25×25 mm—supports standard tooling setups.

· Max. Internal Tool Holder Diameter: Ø 40 mm—fits larger tools for heavy milling and drilling.

Motor & Power

· Spindle / Sub-Spindle Motor Power: 15 kW / 11 kW—delivers sufficient torque for tough materials like titanium and stainless steel.

· Milling Spindle Power: 3.9 kW—handles precision milling operations with ease.

· Total Machine Power: 45 kW—ensures stable performance even during peak loads.

Dimensions & Weight

· Machine Height: 2100 mm—optimizes floor space while maintaining operational accessibility.

· Floor Space (L × W): 2900×1900 mm—fits into standard manufacturing layouts.

· Total Machine Weight: 5500 kg—provides a sturdy base to minimize vibration during high-speed operations.

Design

The 16-Station Electric Spindles CNC Mill-Turn integrates durability and precision into its core design, starting with THK ball screws and guides—renowned for low friction and high rigidity—paired with Japanese imported bearings to ensure transmission accuracy. This combination reduces wear and tear, extending the machine’s service life while maintaining consistent performance. The dual-spindle layout (main and sub) enables parallel machining, doubling throughput by processing two workpieces simultaneously. Its 16-station turret is engineered for high rigidity, supporting heavy-duty milling of complex parts without compromising precision. The compact footprint (2900×1900 mm) is optimized for factory floors, while the robust 5500 kg structure dampens vibrations—critical for achieving tight tolerances in high-speed operations. Every design element, from the coolant system (260 L capacity) to the tooling setup, is tailored to minimize downtime and maximize efficiency, making it a cornerstone of modern precision manufacturing.

1. Component processing for semiconductor manufacturing equipment

Semiconductor production equipment (such as lithography machines, etching machines, thin film deposition equipment, etc.) requires a large number of high-precision, high-cleanliness components, and CNC machine tools are crucial in the manufacture of such components.

Reaction chambers and vacuum components: Processing high-temperature-resistant, corrosion-resistant metals (such as aluminium alloys, stainless steel) or ceramic chambers to ensure sealing and surface finish.

Precision fixtures and carriers: Fixtures used for wafer transfer and positioning require micron-level precision to prevent contamination or displacement.

Gas/liquid piping systems: Processing complex flow channels and interfaces to ensure leak-free operation and precise fluid control.

2. Moulds and components for packaging and testing processes

Lead frame moulds: Processing stamping moulds for lead frames used in chip packaging, where precision directly impacts pin alignment and electrical performance.

Heat sinks and substrates: Processing heat dissipation structures made of high-thermal-conductivity materials (such as copper, silicon carbide) to ensure chip heat dissipation efficiency.

Probe cards and test fixtures: Manufacturing precision probe card substrates for chip testing, requiring micron-level hole position accuracy.

Is customization available?

Yes. We have rich experience in custom processing and can provide flexible customization services from bed to processing parameters to appearance.

How can I choose the most suitable machines ?

Please tell me your specifications ,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.

What is your standard package?

Our package is export standard plywood case with pallet.

Do you provide operator training?

Yes. We welcome your engineers or operators to have operator training at our site. And we are able to provide online technical support as well.

What material is used for the machine tool bed?

Machine tool casting using HT300.
