Servo Turret CNC Lathe Machine for Small Parts Cost-Efficient Machining

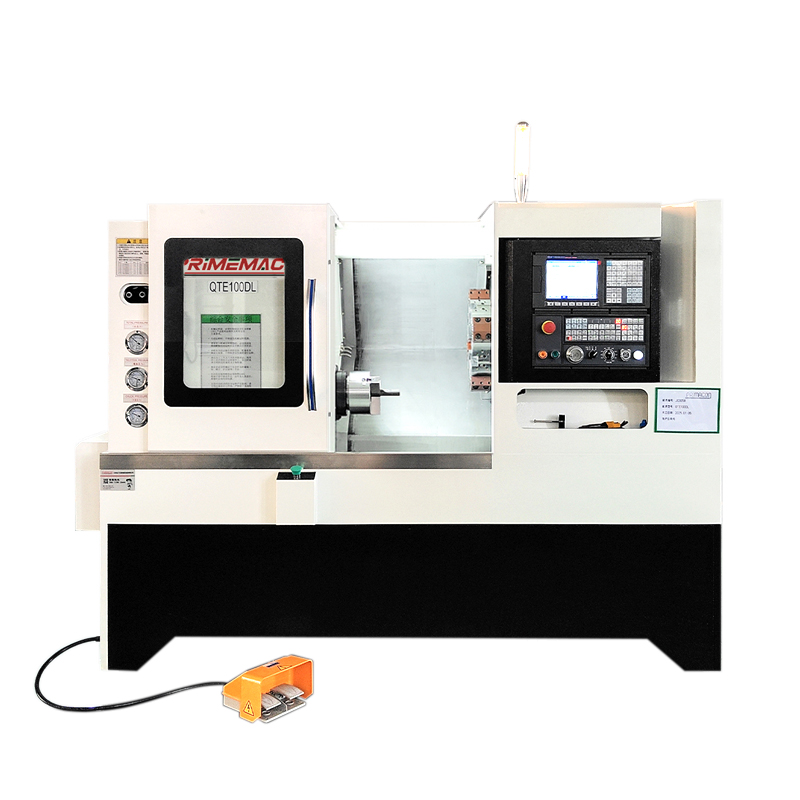

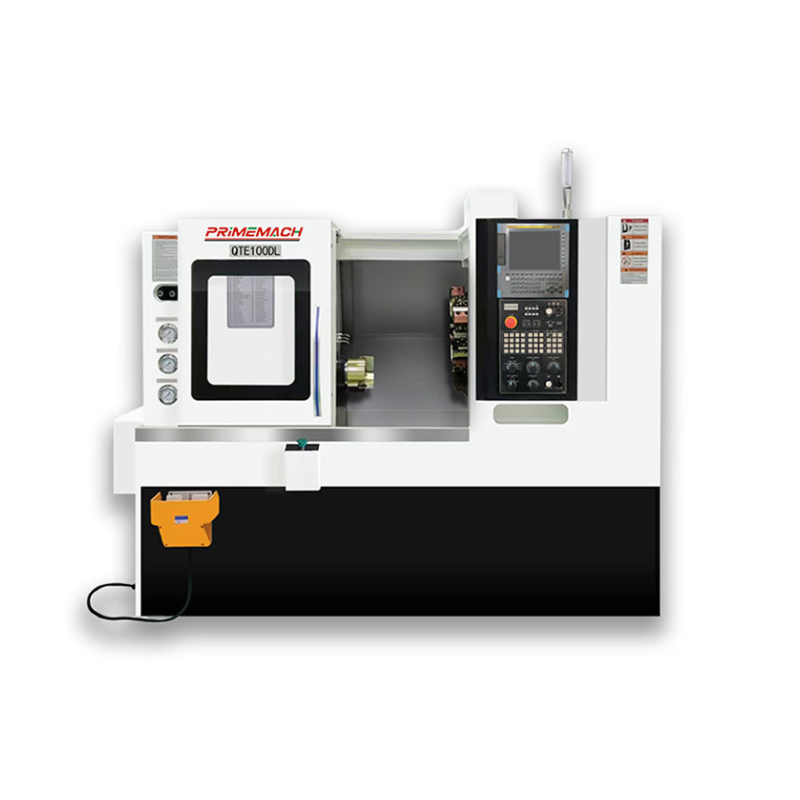

Product Overview

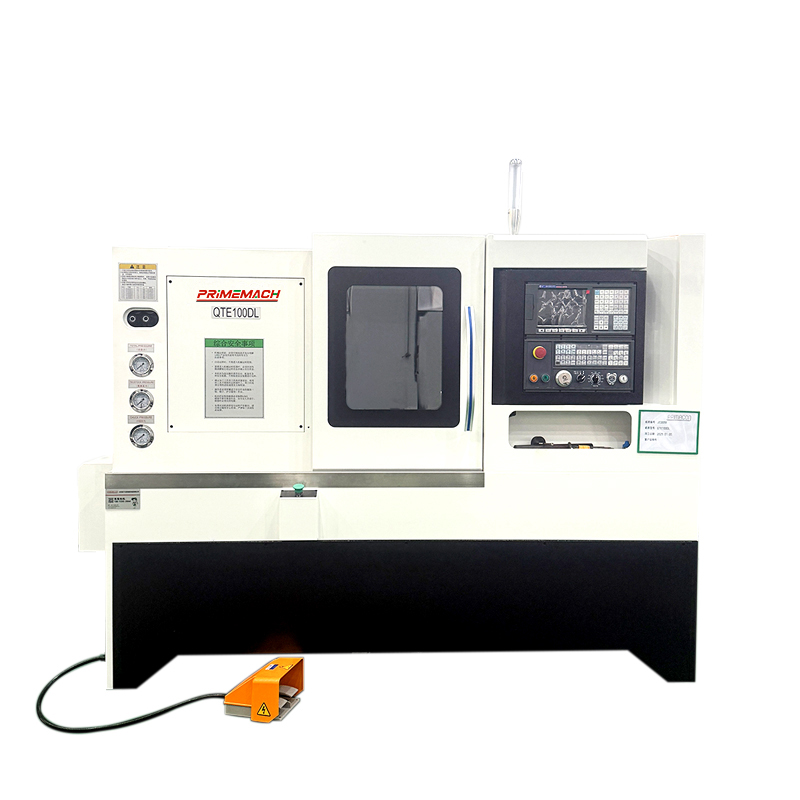

The Servo Turret CNC Lathe (Model: QTE) stands as a robust solution for precision machining, engineered to handle a wide range of small to medium-sized components with exceptional accuracy. Equipped with the FANUC Oi-TF CNC Control System, this lathe ensures seamless operation and reliable performance, making it ideal for industries requiring consistent quality, such as automotive, electronics, and precision engineering.

With a maximum swing diameter of ø 500 mm and a maximum machining capacity of ø 350×350 mm, it balances versatility and precision, accommodating various workpiece sizes. The high-performance spindle, capable of reaching 4200 RPM, paired with a rigid structure, enables efficient cutting across different materials, from metals to alloys. Whether for batch production or custom part manufacturing, this lathe delivers the stability and precision needed for complex machining tasks.

Product Specifications

CNC Control System

At the core of the lathe is the FANUC Oi-TF system, renowned for its user-friendly interface and advanced programming capabilities, ensuring smooth control over all machining processes.

Machining Capacity

· Max. Swing Diameter: ø 500 mm

· Max. Machining Diameter × Length: ø 350×350 mm

· Spindle Bore Diameter: ø 56 mm

· Max. Bar Machining Diameter: ø 46 mm

Spindle

· Max. Spindle Speed:3000/ 4200 RPM

· Spindle Nose Type: A2-5

· Chuck Size: 6″ Hollow Chuck/Collet

Feed Axes

· X-axis:

· Max. Travel: 420 mm

· Rapid Traverse Speed: 25 m/min

· Z-axis:

· Max. Travel: 500 mm

· Rapid Traverse Speed: 25m/min

Turret

· Number of Tool Positions: 8 T

· External Tool Holder Height: 25×25 mm

· Max. Internal Tool Holder Diameter: 32 mm

Tailstock

· Tailstock Travel: 255 mm

· Quill Travel: 100 mm

· Quill Type: MT-5

· Tailstock Pressure: 5-20 KG

Motor

· Spindle Motor: 7.5 KW

· Total Machine Power: 20 KW

Others

· Coolant Tank Capacity: 140 L

· Machine Height: 1700 mm

· Floor Space (Length × Width): 2350×1600 mm

· Total Machine Weight: 2800 KG

Optional Configurations

Enhance versatility with optional add-ons, including:

· GSK/SYNTEC System

· Gantry Robot

· Tailstock Center

· High-Pressure Water Output (30Bar)

· Bar Feeder, Parts Catcher, Chip Conveyor

· 7.5KW Electric Spindle

· 8-Inch Hollow Chuck

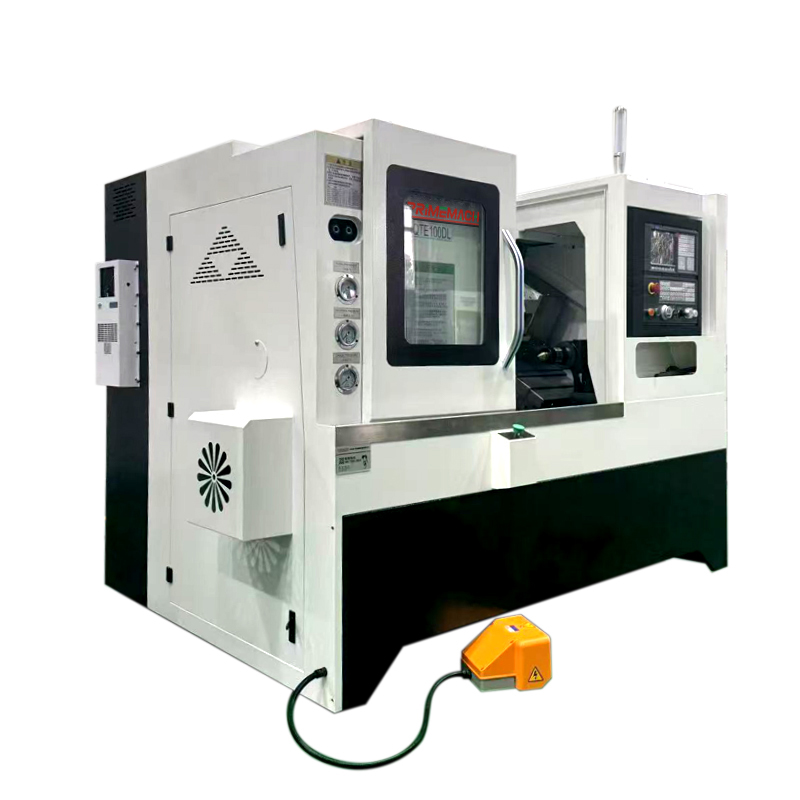

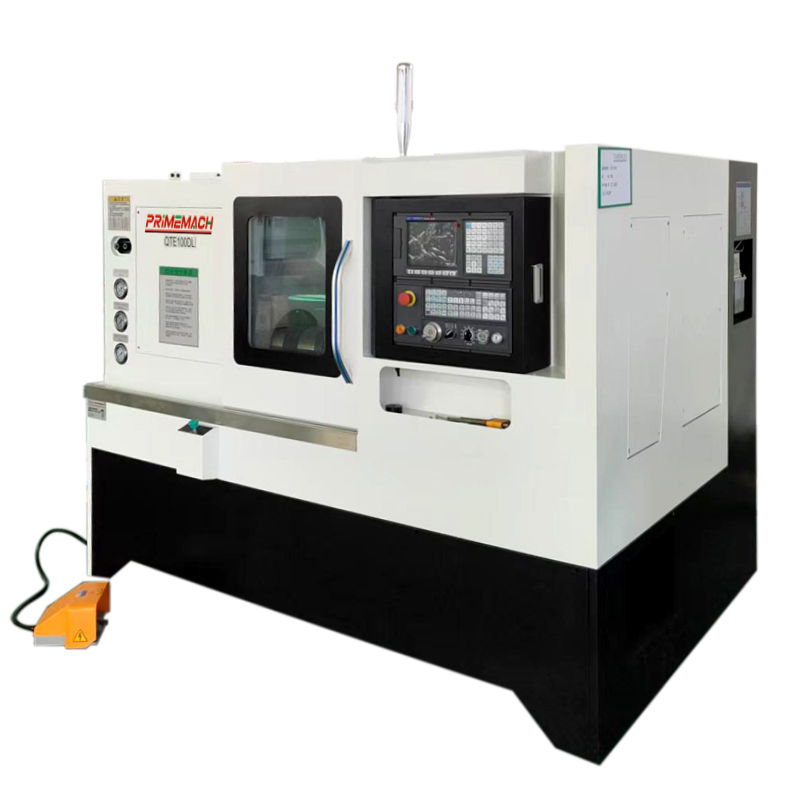

Design

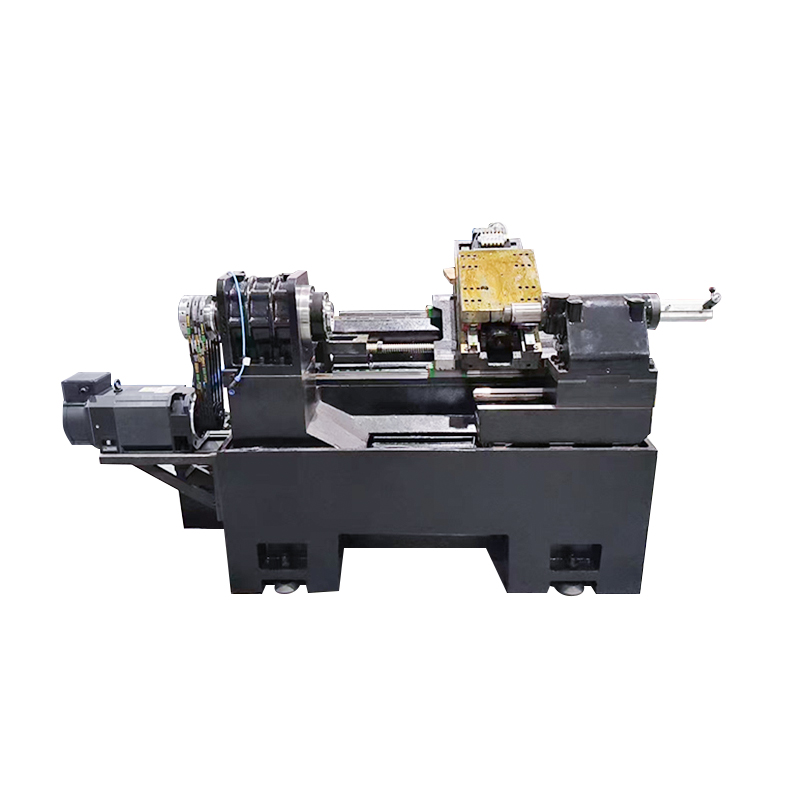

The Servo Turret CNC Lathe boasts a robust design focused on durability and precision. Its structure is optimized to support heavy-duty machining while maintaining stability, thanks to a total weight of 2800 KG that minimizes vibration during high-speed operations.

The compact footprint (2350×1600 mm) makes it suitable for workshops with limited space, without compromising on machining range. The integration of a 6″ hollow chuck/collet ensures secure workpiece clamping, while the MT-5 quill type tailstock provides reliable support for long workpieces, reducing deflection and enhancing accuracy.

Every component, from the spindle to the feed axes, is engineered to work in harmony, leveraging the FANUC Oi-TF system to deliver consistent results. Whether handling small bars or larger workpieces, the lathe’s design prioritizes efficiency, precision, and ease of maintenance, making it a valuable asset for modern manufacturing facilities.

1. Precision machining of complex components

Typical applications: Precision components for tools such as wrenches, screwdriver heads, pliers, etc.

Technical advantages: CNC machine tools achieve micron-level precision through programming, ensuring consistency in complex geometric shapes such as threads and grooves, and reducing human error.

2. Efficient manufacturing of moulds

Manufacturing of die-casting moulds and injection moulds for hardware tools.

3. Customisation and small-batch production

Flexible production: Quickly switch product specifications by modifying programs to meet customer-specific requirements (e.g., special-sized wrenches).

Cost-effectiveness: Reduces mould investment costs for small-batch orders, particularly suitable for trial production by emerging tool brands.

4. Upgrading the Manufacturing of Cutting Tools and Measuring Instruments

Cutting tool production: CNC grinding machines precisely adjust the cutting edge angles of drill bits and milling cutters to enhance durability (e.g., hard alloy tool edge precision ±0.01mm).

Gauge Processing: CNC coordinate grinding machines produce high-precision measuring surfaces for calipers and micrometers, ensuring compliance with ISO international standards.

5. Repair and Remanufacturing

Repair Applications: Five-axis CNC machines perform laser cladding repairs on worn mould surfaces to extend service life.

Old Part Upgrades: Using 3D scanning and CNC machining, traditional tools are upgraded to meet new standards.

Do you have export experience? What documents can you provide?

Yes, our machines have been exported worldwide. We provide invoices, packing lists, certificates of origin, CE certifications, etc.

Is customization available?

Yes. We have rich experience in custom processing and can provide flexible customization services from bed to processing parameters to appearance.

What payment methods do you accept?

We accept T/T, wire transfer, and L/C, among others.

How can I choose the most suitable machines ?

Please tell me your specifications ,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.

What material is used for the machine tool bed?

Machine tool casting using HT300.
