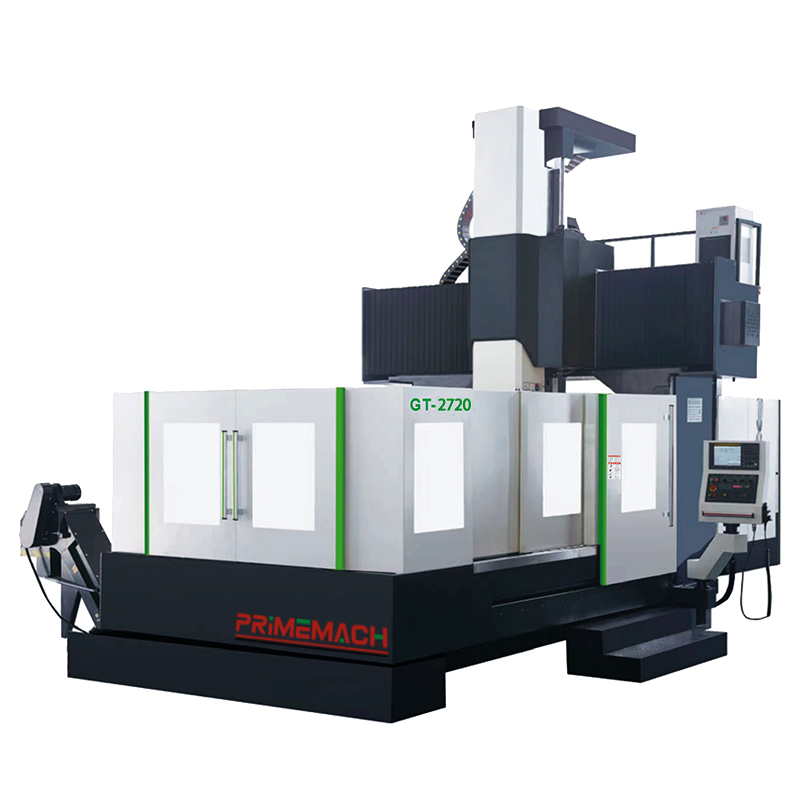

High-Speed Gantry CNC Mold Machining Center with Wide Range Variable Speed Drive

Product Overview

The 2500x1800mm High-Precision Gantry Center is a state-of-the-art mold machining solution designed for large-scale components. With a 2800mm X-axis and 2000mm Y-axis, this machine offers uncompromising accuracy and versatility for aerospace, automotive, and industrial mold applications. Its double-column gantry design and advanced CNC system enable multi-axis machining of intricate molds.

Key Features

Ultra-Precision Machining

The full-closed loop linear scale system ensures positioning accuracy of ±0.008/300mm and repeatability of ±0.005/300mm. The HSK-A63 spindle with 6,000 RPM and 18.5kW power supports high-speed cutting of hard materials like tungsten carbide.

Heavy-Duty Rigidity

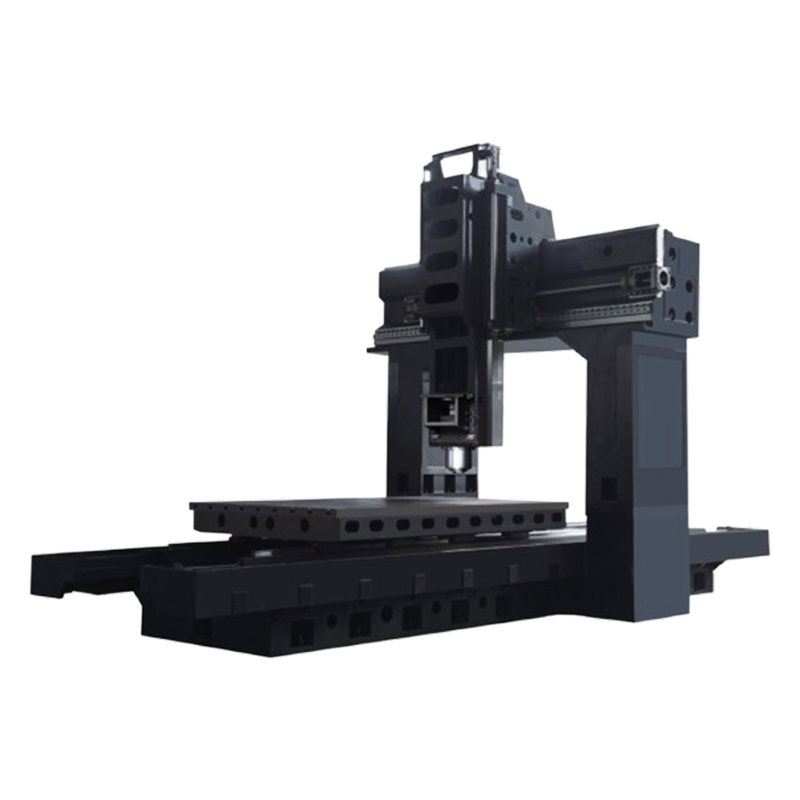

Constructed with Meehanite cast iron, the machine’s integral bed and box guideways provide superior damping and load capacity (up to 5 tons). The double-nut preloaded ball screws and linear linear guides enhance stability during heavy milling operations.

Smart Manufacturing Integration

The Siemens 840D sl control system supports 5-axis and AI-driven adaptive machining. The 40-tool ATC and automatic workpiece probing reduce setup time, while IoT connectivity enables remote monitoring and predictive maintenance.

1. Large-scale mould manufacturing

Processing objects: Large-scale stamping moulds for automotive body panels, large-scale injection moulds for home appliances and automobiles.

Application value: The large table can support mould blanks weighing several tonnes, and the powerful rigidity allows for deep milling of mould surfaces, significantly improving the processing efficiency and surface quality of large-scale moulds.

2. New Energy and Aerospace

Processing Objects: Rear compartments and battery trays of integrated die-cast bodies for new energy vehicles; spacecraft hulls and satellite frames.

Application Value: Enables one-time high-precision machining of ultra-large aluminium alloy structural components, meeting the stringent requirements for lightweight and high-strength structures in the aerospace and new energy vehicle sectors.

3. Heavy machinery and energy equipment

Processing objects: bases of engineering machinery, hydraulic excavator boom arms; gearbox housings and bases of wind turbine generators.

Application value: Capable of heavy-duty machining of high-strength alloy steel, processing critical load-bearing structural components to ensure reliability and durability under extreme operating conditions.

4. Precision Equipment and Rail Transportation

Processing objects: high-speed train locomotive traction motor bases, large precision measuring instrument bases, and laser equipment bed bodies.

Application value: Achieves extremely high geometric precision (flatness, perpendicularity) on large-format dimensions, ensuring the foundational stability and motion precision of high-end equipment.

What materials can this machine process?

It efficiently machines stainless steel (304/316), aluminum (6061/7075), titanium (Grade 5), and engineering plastics (PEEK/POM).

How does Primacon provide after-sales service for CNC machine ?

We offer worldwide after-sales support, including machine installation, commissioning, operator training, and regular maintenance. Our technical team is always ready to address any technical issues, ensuring the long-term operation of the equipment.

What is your standard package?

Our package is export standard plywood case with pallet.

Do you provide operator training?

Yes. We welcome your engineers or operators to have operator training at our site. And we are able to provide online technical support as well.
