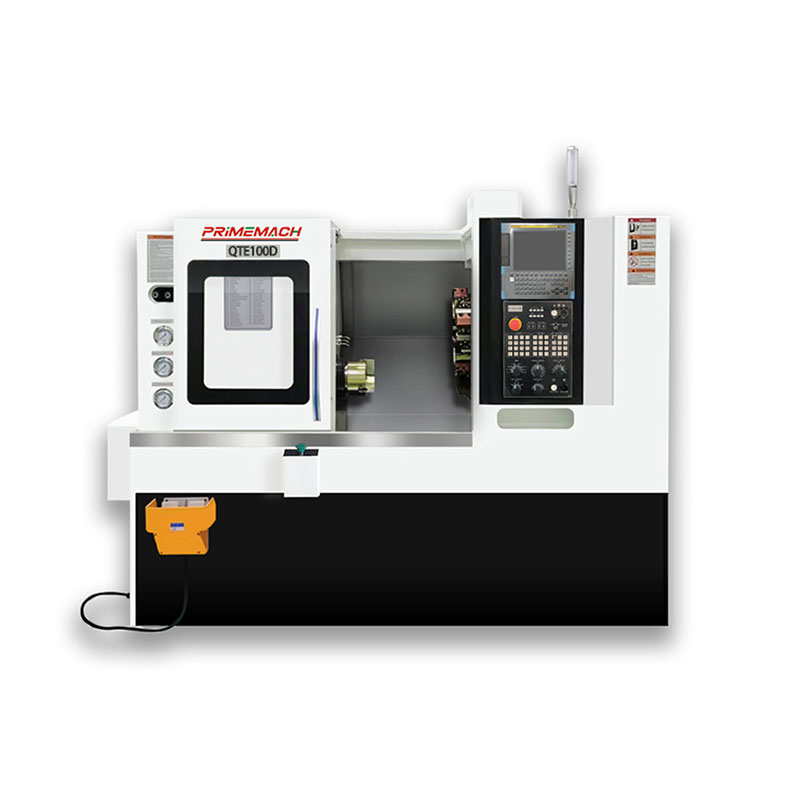

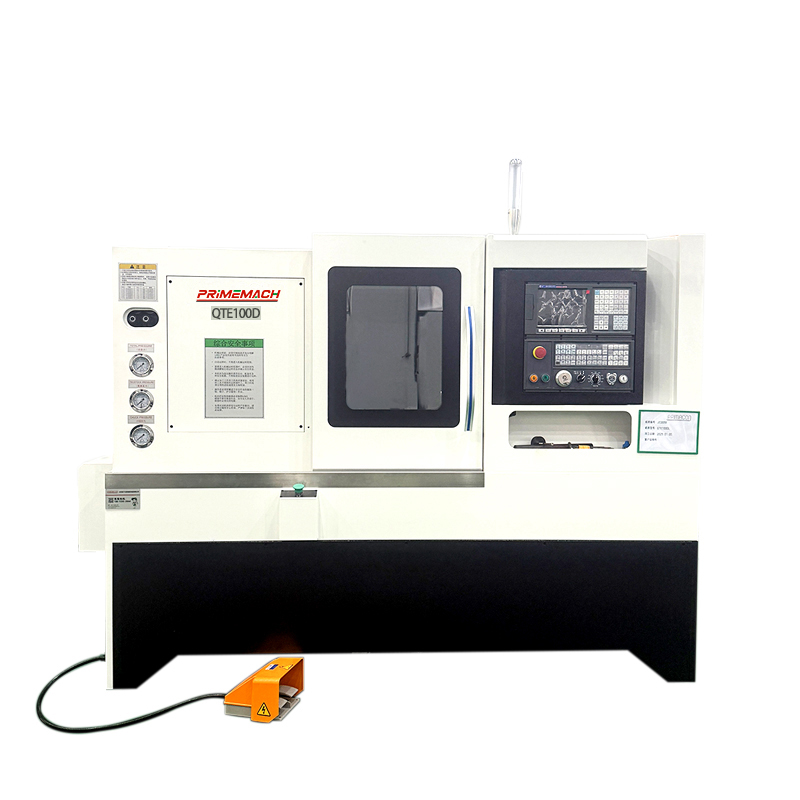

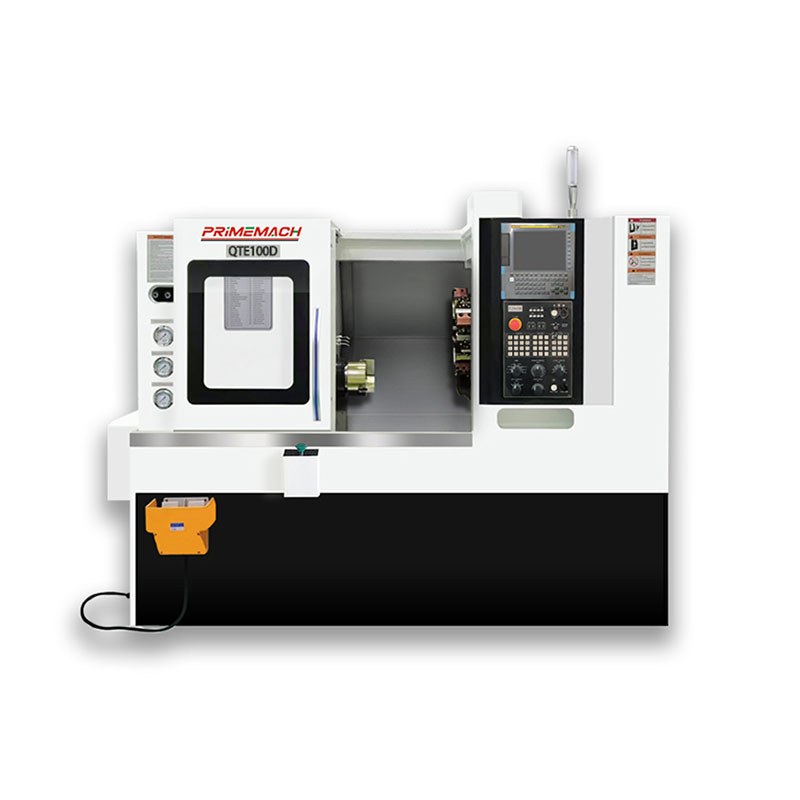

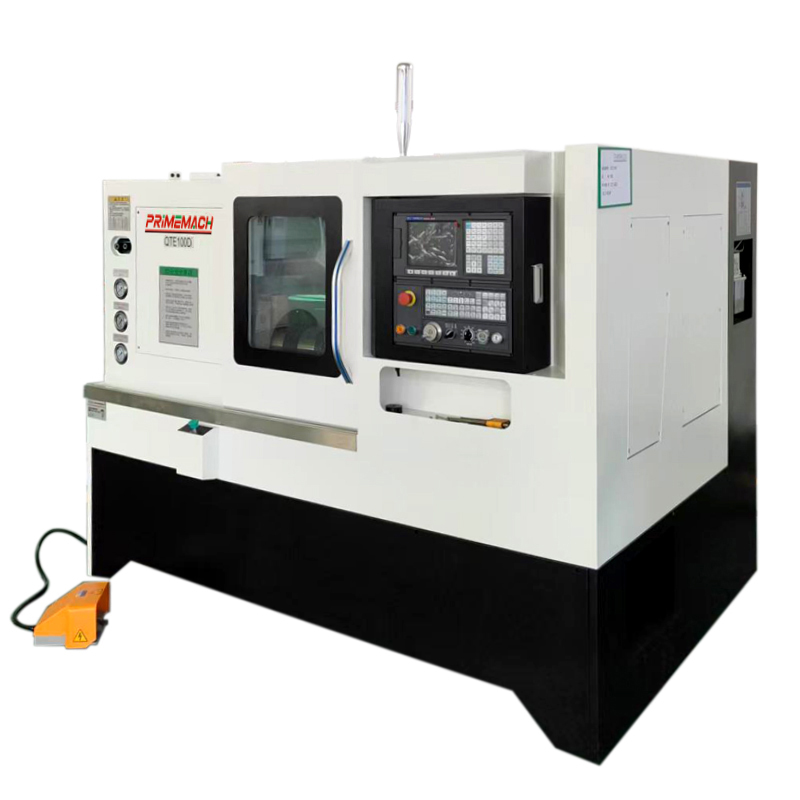

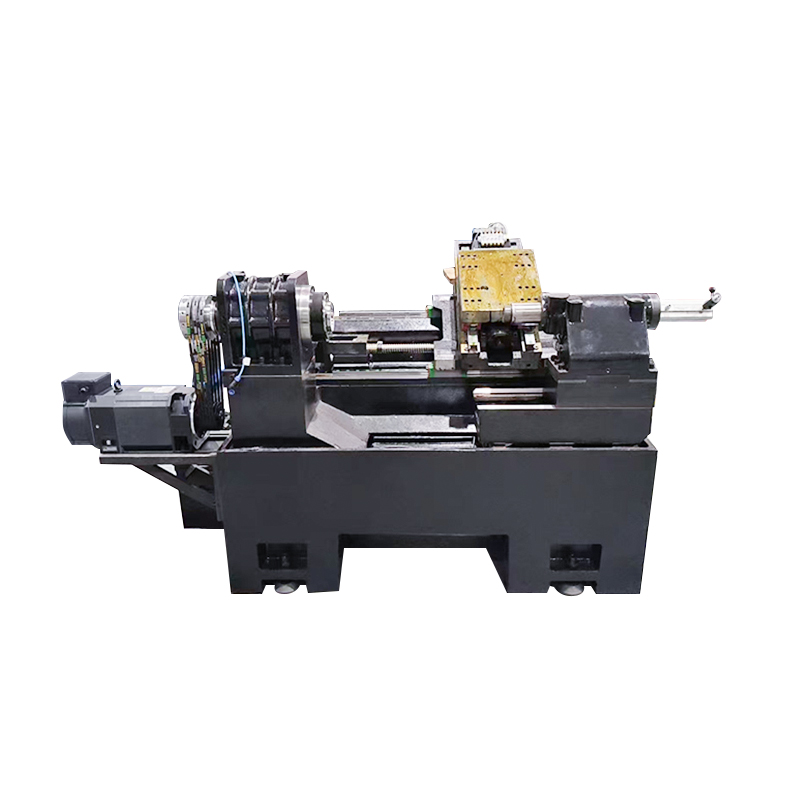

This Sleeve Type CNC Turret Lathe from Anhui Primacon Intelligent Equipment Co., Ltd. is engineered for high-precision machining of small parts, combining advanced technology with robust performance. Equipped with a FANUC Oi-TF CNC Control System—a industry-leading solution for reliable operation—it stands out in small part manufacturing scenarios, from automotive components to electronics parts. With a focus on accuracy and efficiency, this machine caters to high-volume production needs while maintaining strict dimensional tolerances, making it a versatile choice for modern manufacturing facilities.
At the core of this lathe is the FANUC Oi-TF CNC Control System, renowned for its user-friendly interface and precise command execution. This system ensures seamless integration with all machine components, enabling smooth operation and consistent performance across diverse machining tasks.
· Max. Swing Diameter: ø 500 mm, allowing for versatile handling of workpieces within this range.
· Max. Machining Diameter × Length: ø 350 × 350 mm, suitable for a wide array of small to medium-sized parts.
· Spindle Bore Diameter: ø 56 mm, facilitating efficient material feeding and handling.
· Max. Bar Machining Diameter: ø 46 mm, ideal for continuous production of bar-fed small parts.
The spindle is designed for reliability and speed, with a Max. Spindle Speed of 4200 RPM to meet high-efficiency machining demands. It features an A2-5 Spindle Nose Type and is compatible with a 6″ Hollow Chuck/Collet, ensuring secure workpiece clamping during operation.
· X-axis: Boasts a Max. Travel of 420 mm and a Rapid Traverse Speed of 25 m/min, enabling quick and precise movement for intricate cuts.
· Z-axis: Offers a Max. Travel of 350 mm with the same 25 m/min Rapid Traverse Speed, ensuring balanced performance across both axes for complex part geometries.
The machine is equipped with a turret featuring 8 Tool Positions, providing flexibility for multiple tool changes without compromising efficiency. It supports 25×25 mm External Tool Holders and accommodates Maximum Internal Tool Holders with a Diameter of 32 mm, adapting to various tooling requirements.
· Spindle Motor Power: 7.5 KW, delivering sufficient torque for demanding machining operations.
· Total Machine Power: 20 KW, ensuring stable energy supply for all integrated systems.
· Coolant Tank Capacity: 140 L, maintaining effective cooling during extended production runs.
· Machine Height: 1650 mm, designed for ergonomic operation and easy integration into workshop layouts.
· Floor Space (Length × Width): 2350 × 1650 mm, optimizing space utilization in manufacturing facilities.
· Total Machine Weight: 2550 KG, reflecting a robust build for long-term durability.
To enhance versatility, the lathe offers optional add-ons such as SYNTEC/FANUC Control Systems, Gantry Robots, Tailstock Centers, High-Pressure Water Output (30Bar), Bar Feeders, Parts Catchers, Chip Conveyors, 7.5KW Electric Spindles, and 8-Inch Hollow Chucks, allowing customization to specific production needs.
The design of this Sleeve Type CNC Turret Lathe prioritizes precision, durability, and adaptability. Its structure is optimized to support the FANUC Oi-TF system and high-performance spindle, ensuring minimal vibration during high-speed operation (up to 4200 RPM). The 8-position turret is engineered for quick tool indexing, reducing non-cutting time and boosting overall productivity.
With a focus on user-centric design, the machine’s compact footprint (2350×1650 mm) and ergonomic height (1650 mm) make it easy to operate and integrate into existing production lines. The robust build (2550 KG weight) ensures stability, while the generous 140 L coolant tank supports extended machining sessions without frequent refills. Optional configurations further allow manufacturers to tailor the machine to their unique workflows, making it a flexible solution for small parts machining.
NC | CNC Control System | FANUC Oi-TF | Unit |
Machining Capacity | Max. Swing Diameter | ø 500 | MM |
Max. Machining Diameter × Length | ø 350×350 | MM | |
Spindle Bore Diameter | ø 56 | MM | |
Max. Bar Machining Diameter | ø 46 | MM | |
Spindle | Max. Spindle Speed | 4200 | RPM |
Spindle Nose Type | A2-5 | / | |
Chuck Size | 6″ Hollow Chuck/Collet | INCH | |
Feed | X-axis Max. Travel | 420 | MM |
X-axis Rapid Traverse Speed | 20 | M/MIN | |
Z-axis Max. Travel | 350 | MM | |
Z-axis Rapid Traverse Speed | 20 | M/MIN | |
Turret | Number of Tool Positions | 8 | T |
External Tool Holder Height | 25*25 | MM | |
Maximum Internal Tool Holder Diameter | 32 | MM | |
Motor | Spindle Motor Power | 7.5 | KW |
Total Machine Power | 20 | KW | |
Others | Coolant Tank Capacity | 140 | L |
Machine Height | 1650 | MM | |
Floor Space (Length × Width) | 2350*1650 | MM | |
Total Machine Weight | 2550 | KG | |
Optional Configurations | GSK/SYNTEC System | Gantry Robot | Tailstock Center |
High-Pressure Water Output 30Bar | Bar Feeder, Parts Catcher | Chip Conveyor | |
7.5KW Electric Spindle | 8-Inch Hollow Chuck | / |
