Profile Machine Vertical CNC Machining Center CNC Lathe

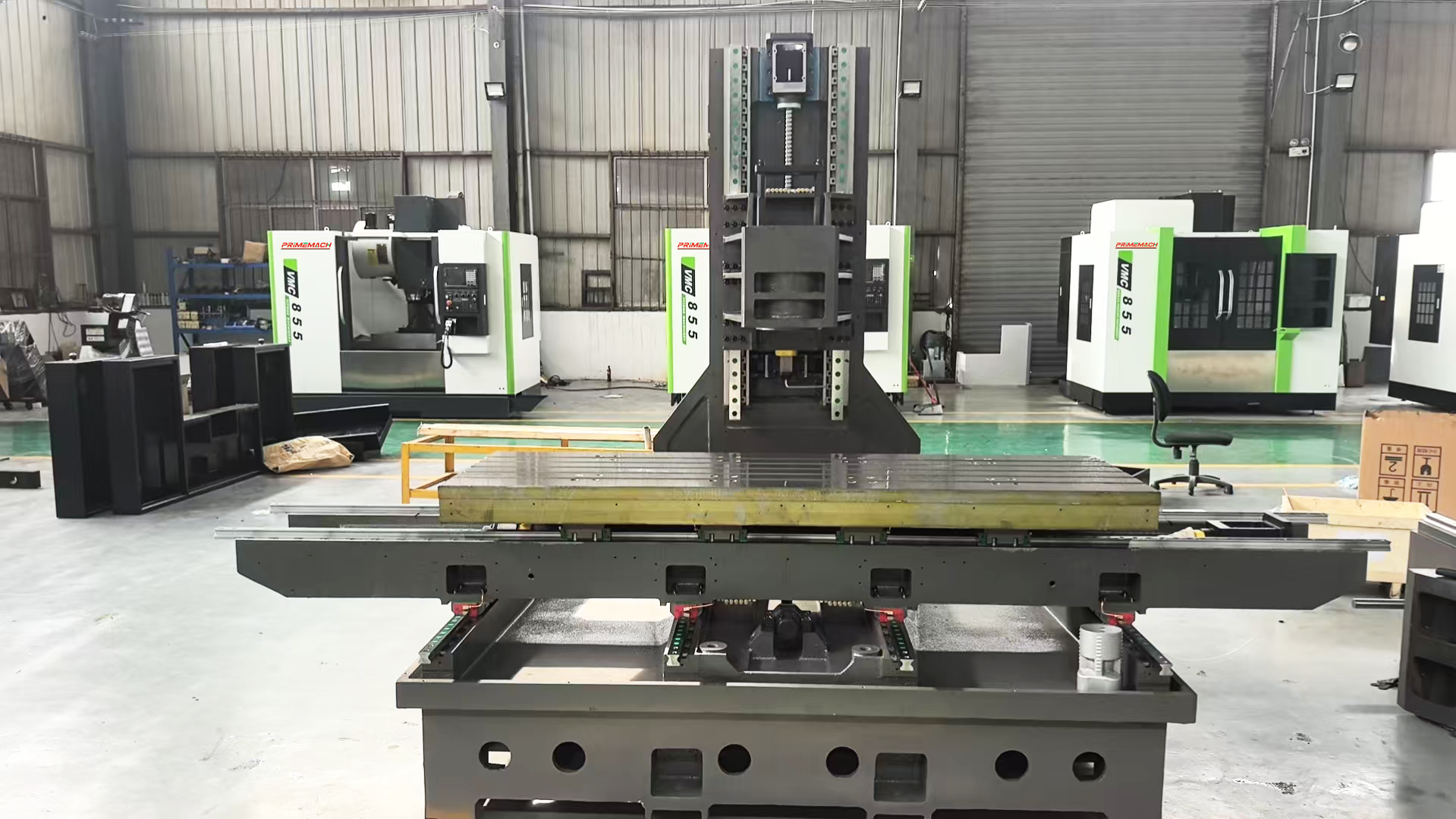

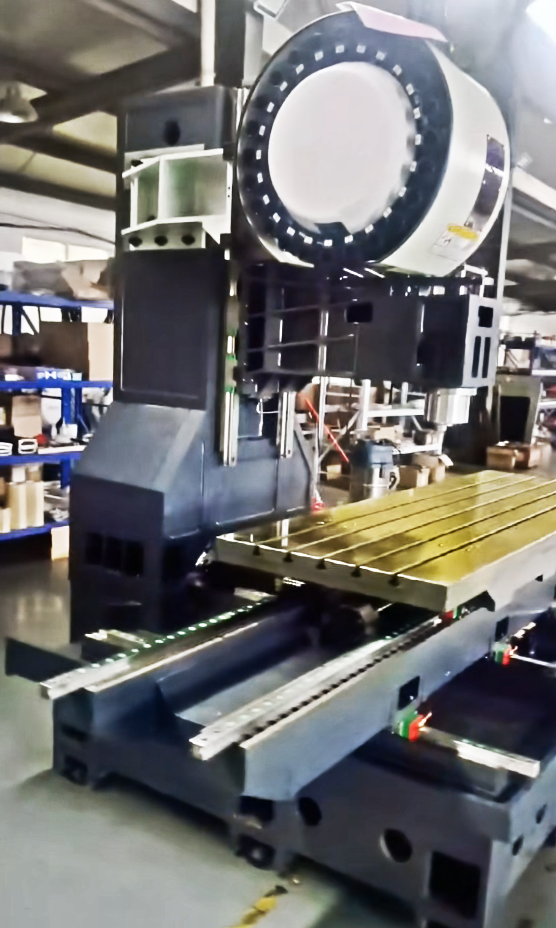

1.The bed and frame of the machine tool are independently designed by our company, ensuring the stability of the machine tool. The structure is reasonable, with characteristics of good rigidity and dynamic performance.

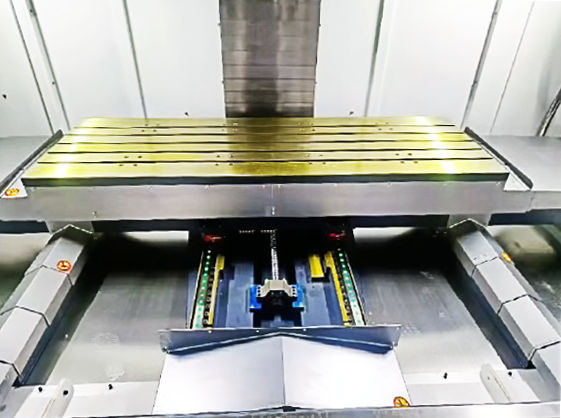

2.The X, Y, Z axis adopt imported precision ball screws, which effectively ensure the dynamic accuracy and stability of the machine tool during operation. All three axes adopt linear rail structures, ensuring the characteristics of high speed, high precision and high efficiency of the machine tool.
3.The internal electrical components and signal lines are imported from Taiwan or Japan, ensuring the stability of the machine tool during use.

Quantity:
Availability:





Inquire Add to Basket

Profile machine Vertical CNC machining center Bench-Top CNC Machining Center 0.003mm Micro Precision CNC Machining Center CNC Machining Center for Small Parts Bench-Top Vertical CNC Machining Center CNC Machining Center 0.003mm Micro Precision Small Parts

Description

Product Overview

Vertical machining center is widely used in machinery, automotive, military, mold and other industries. It is mainly used for roughing and semi-finishing of molds, as well as processing of precision parts. The machine tool adopts advanced methods such as finite element analysis, ensuring excellent performance and high cost-effectiveness.

Key Features

Lubrication System

The spindle bearing adopts lubricating grease from the American Exxon Company. The X-axis, Y-axis, Z-axis guide pairs and ball screws are lubricated with thin oil at fixed times and quantities, and are equipped with liquid level low-level alarm function.

CNC Cabinet

An explosion-proof and dust-proof air conditioning device is installed, allowing the CNC system to work at a constant temperature. This reduces the requirements for the user's operating environment, and improves the reliability of long-term stable operation and service life of the system.

Product Parameter

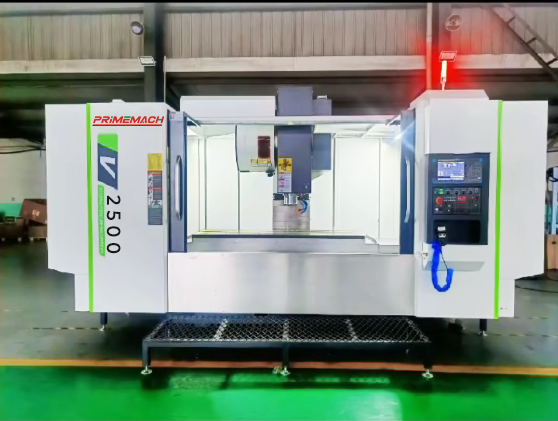

Item	Unit	V2500
X-axis travel	MM	2500
Y-axis travel	MM	750
Z-axis travel	MM	700
Spindle center to column distance	MM	775
Spindle nose to table distance	MM	87-787
Table size	MM	2600*700
Maximum load capacity	KG	800
T-slot	No.	5-18*105
Spindle specifications	/	BT40/150
Spindle speed	RPM	50-10000
Main motor power	KW	11
X, Y, Z Axis Rapid Traverse	M/MIN	36/36/30
X/Y/Z-axis servo motors Transmission mode and transmission	/	Coupling
X/Y/Z-axis ball screw diameter	MM	36
X/Y/Z-axis linear guide specification	MM	X/Y/Z=45/35/45 Number of sliders=8/8/6
Feed rate	MM/MIN	12000
Minimum step increment	MM	0.001
Positioning accuracy	/	JIS±0.005/300
Repeatability	/	JIS±0.003/300
Tool magazine capacity	No.	24
Tool magazine type	/	Disc type
Tool holder type	/	BT40
CNC system(optional)	/	SYNTEC
Total weight(approx)	T	7.8
Machine dimensions (lengthwidthheight)	MM	578028002800

Application Cases

1. Automotive Component Machining

Precision Shaft Components: Leveraging the machine tool's positioning accuracy and high-rigidity structure, it processes automotive transmission gear shafts (e.g., input shafts of manual transmissions for passenger cars), ensuring smooth operation of the transmission system.

Automotive Structural Parts: Utilizing the high-speed rapid traverse and large-stroke characteristics of the X/Y/Z axes, it processes automotive chassis suspension brackets (e.g., front suspension lower arms for SUVs), enabling efficient forming of complex structures.

FAQ

Where is the company located?

In Tongling, Anhui Province, which is close to Shanghai and Hangzhou, it only takes about three and a half hours by bullet train to reach there.

How long is the warranty period for this product?

The machine tool host is guaranteed free of charge for one year, and the CNC system is guaranteed for one year (except for abnormal use)

What is the service life of the machine tool?

Normal usage conditions allow for a lifespan of ten years.

How does Primacon provide after-sales service for CNC machine ?

We offer worldwide after-sales support, including machine installation, commissioning, operator training, and regular maintenance. Our technical team is always ready to address any technical issues, ensuring the long-term operation of the equipment.
