Precision CNC Gang Tool Lathe for High-Speed Cutting

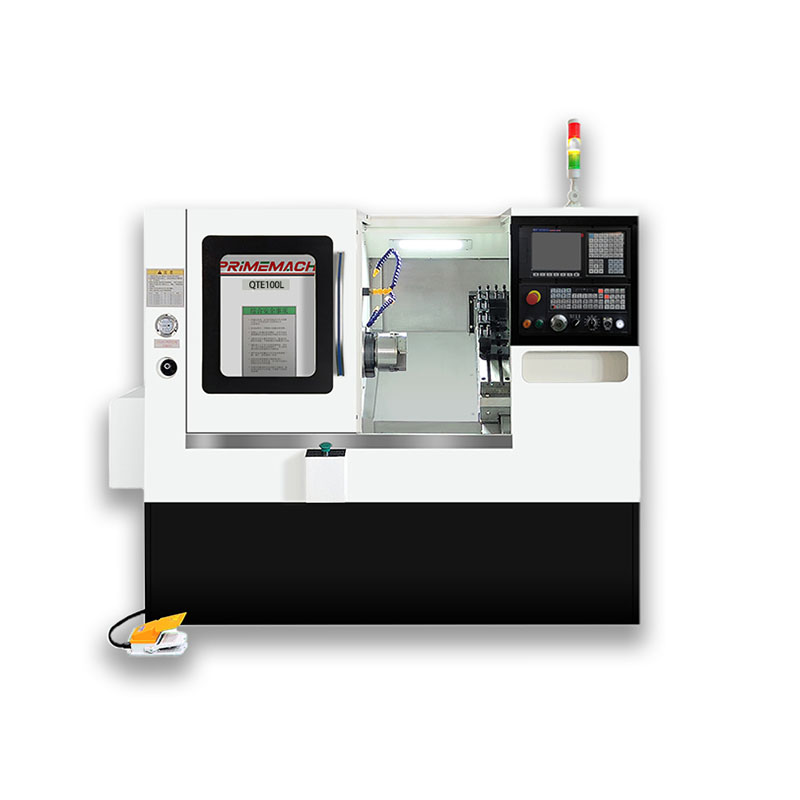

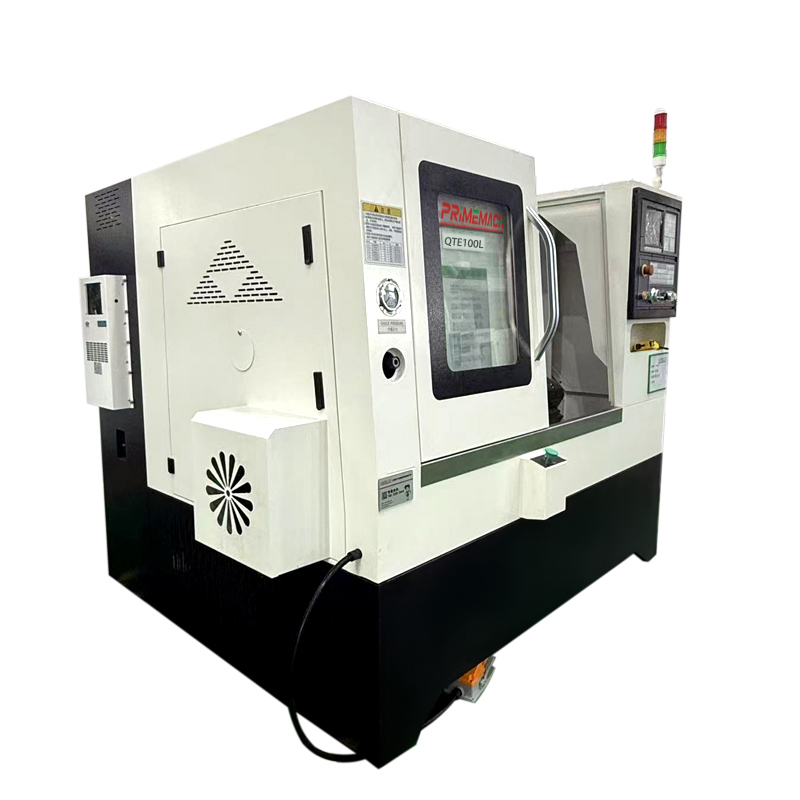

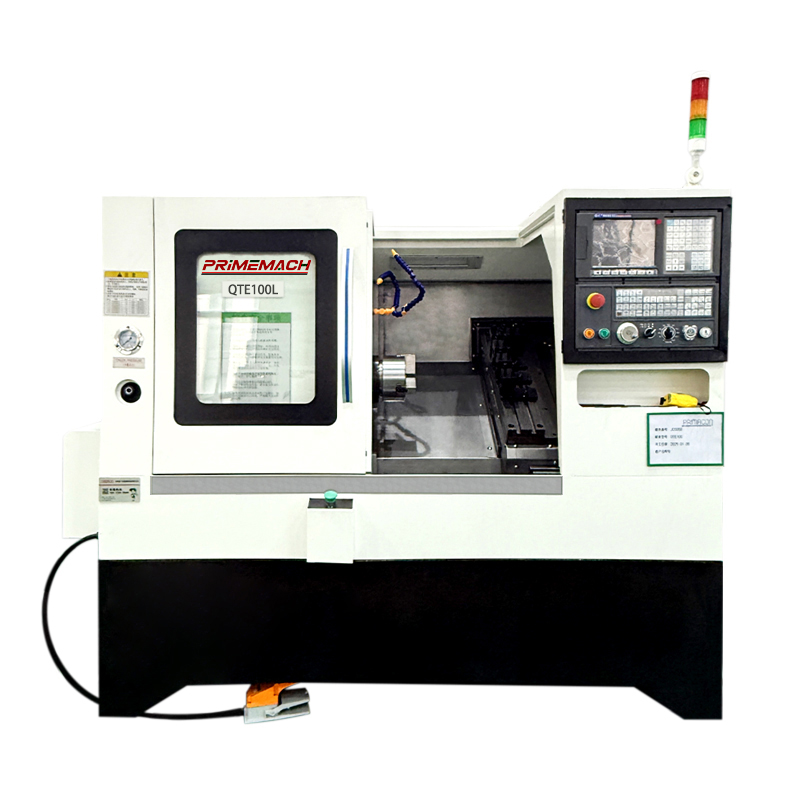

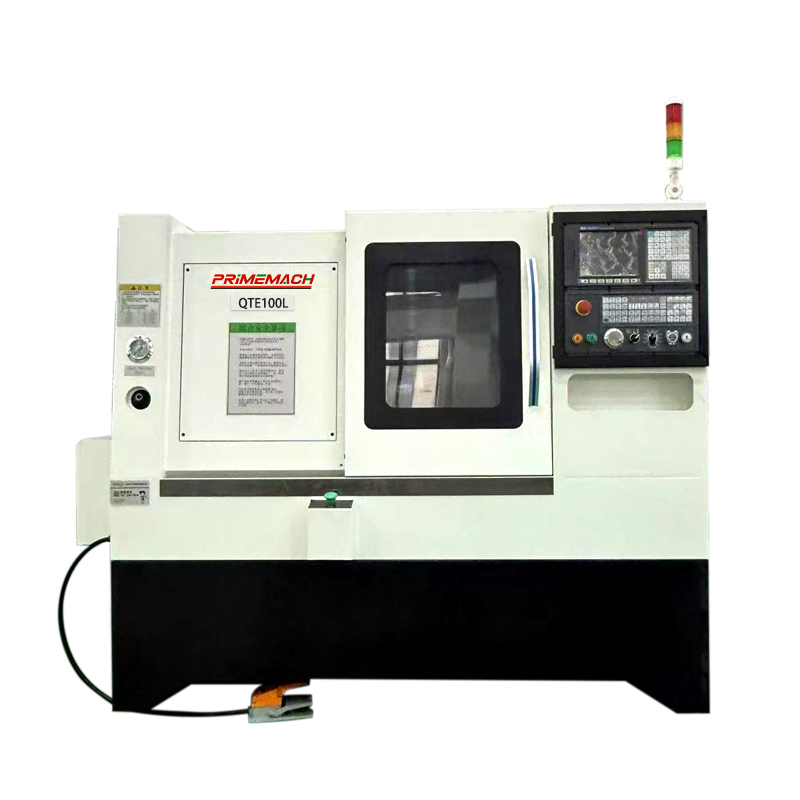

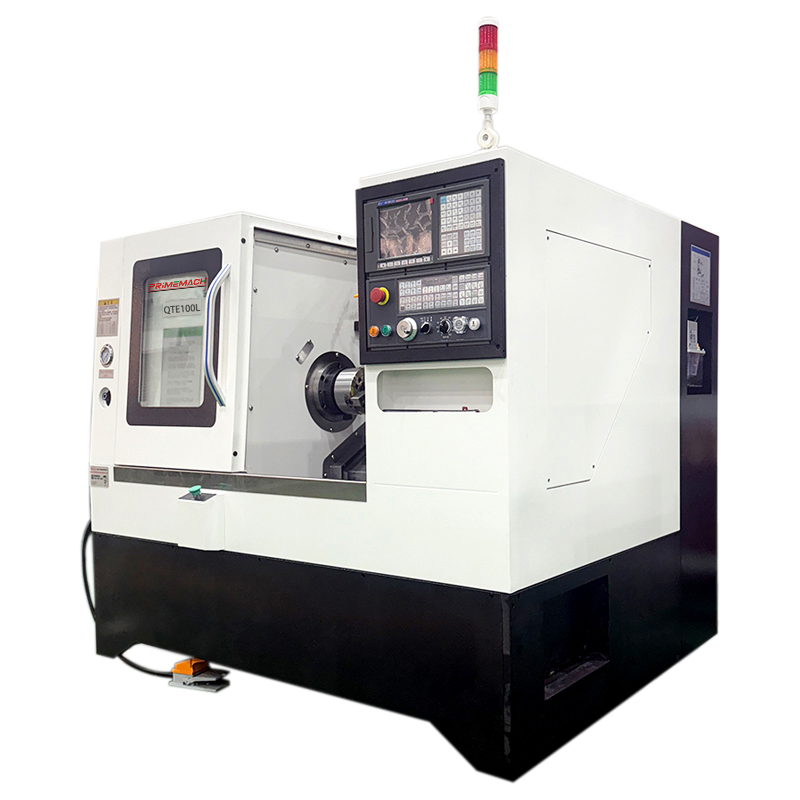

CNC Lathe Machine with Tailstock for Metal Cutting

1. 30° step-rise slant bed ensures cutting rigidity.
2. Equipped with HIWIN linear guides and ball screws from Taiwan for high-precision machining.
3. Large X-axis travel accommodates multi-station part machining.
4. Optional servo turret and multi-station power head for turning and milling.
5. Fully enclosed protection ensures machine longevity.
6. South Korean couplings, ensuring the maintenance of machining accuracy.
7. Schneider Electric components ensure machine stability.

Quantity:
Availability:





Inquire Add to Basket

Precision CNC Gang Tool Lathe for High-Speed Cutting CNC Lathe Machine with Tailstock CNC Lathe with Tailstock Metal Cutting CNC Lathe Heavy Duty CNC Lathe for Metal

Description

Product Overview

This high-precision CNC lathe machine with tailstock is integrated with high-speed roller linear guides, delivering excellent positioning accuracy and long-term repeatability for metal cutting CNC lathe applications. Its high-speed spindle, driven by a water-cooled motor, achieves extremely low radial runout, making it especially suitable for precision metal turning operations that demand both efficiency and dimensional consistency.

The machine is widely applied in long shaft CNC turning, automotive component machining, and high-accuracy metal part manufacturing, where stable support from the tailstock is essential for maintaining straightness and surface finish during extended cutting cycles.

Designed for demanding production environments, this CNC lathe provides reliable performance in carbon steel CNC machining, alloy steel turning, and other continuous metal cutting tasks requiring stable spindle performance and consistent machining accuracy.

Product Features

Rigid Construction:

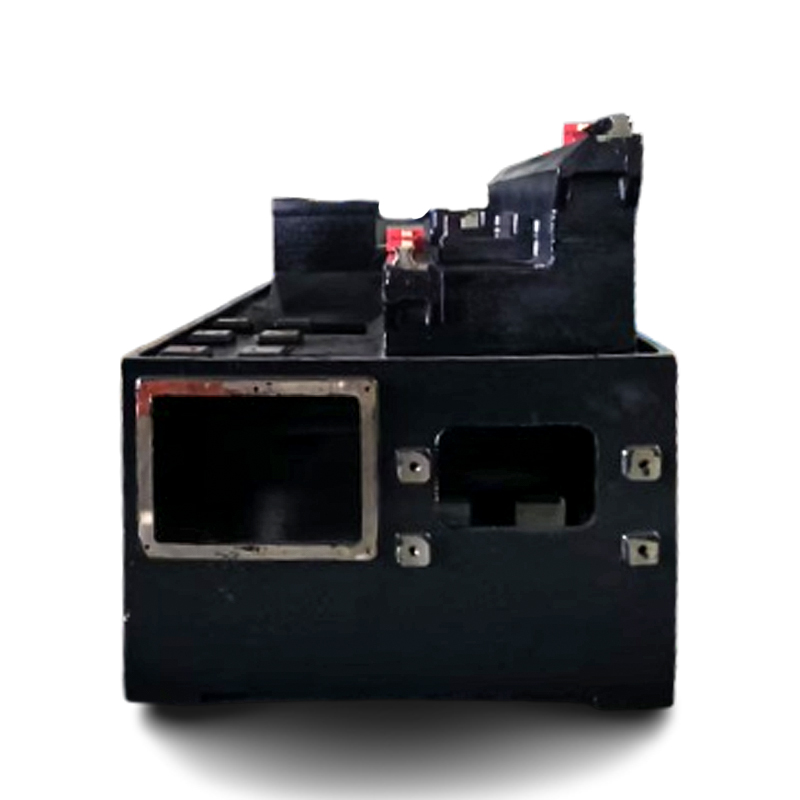

The Meehanite cast iron slant-bed structure, reinforced with internal ribs, enhances overall machine rigidity while promoting smooth chip evacuation. This structural design effectively reduces thermal deformation during continuous CNC turning operations, helping maintain machining stability over long production runs.

High-precision double-nut preloaded ball screws are employed to minimize backlash, providing a significant advantage for thread turning on metal parts and other operations requiring tight tolerance control and repeatable positioning accuracy.

Energy Efficiency:

The variable-speed coolant pump automatically adjusts flow based on real-time cutting load, optimizing cooling performance for high-speed CNC metal cutting while significantly reducing unnecessary power consumption during light-duty operations.

An intelligent sleep mode is activated after periods of inactivity, lowering standby energy usage without compromising spindle thermal balance. This feature ensures fast restart capability and stable performance for batch metal machining and flexible production scheduling.

Product Parameter

NC	CNC Control System	FANUC Oi-TF	Unit
Machining Capacity	Max. Swing Diameter	ø 500	MM
	Max. Machining Diameter × Length	ø 380×450	MM
	Spindle Bore Diameter	ø 56	MM
	Max. Bar Machining Diameter	ø 46	MM
Spindle	Max. Spindle Speed	4200	RPM
	Spindle Nose Type	A2-5	/
	Chuck Size	6″ Hollow Chuck/Collet	INCH
Feed	X-axis Max. Travel	710	MM
	X-axis Rapid Traverse Speed	20	M/MIN
	Z-axis Max. Travel	500	MM
	Z-axis Rapid Traverse Speed	20	M/MIN
Turret	Number of Tool Positions	5	T
	External Tool Holder Height	20*20	MM
	Max. Internal Tool Holder Diameter	25	MM
Motor	Spindle Motor Power	7.5	KW
Motor	Total Machine Power	20	KW
Others	Coolant Tank Capacity	160	L
	Machine Height	1700	MM
	Floor Space (Length × Width)	2350*1650	MM
	Total Machine Weight	2500	KG
Optional Configurations	GSK/SYNTEC System	Gantry Robot	Milling Power Head
	High-Pressure Water Output 30Bar	Bar Feeder, Part Catcher	7.5KW Electric Spindle
	8-Inch Hollow Chuck	63-Tool Turret	Chip Conveyor

Application Cases

1. Chassis and steering system components

Lightweight chassis design has created demand for complex spatial structural components, which can be efficiently machined using multi-axis CNC lathes.

Subframes and steering systems: Tosda's five-axis machines can machine chassis components such as subframes, meeting the new demands brought by structural changes in new energy vehicles.

2. Automation and intelligent production

CNC lathes collaborate with robots to drive the automation upgrade of production lines.

Integration of CNC lathes and robots: Achieve automated processing of multiple varieties and small to medium batches of workpieces, improve clamping efficiency and product consistency, and adapt to flexible production requirements.

FAQ

What is your company's after-sales service support?

1). Supply wearing parts, spare parts and spare parts at the cost price (outside the warranty period);

2). Party B provides Party A with consulting services on processing technology and programming;

3). After the expiration of the warranty period, Party B still provides after-sales service;

4). Regular use of status tracking service, irregular user follow-up.

How does Primacon provide after-sales service for CNC machine ?

We offer worldwide after-sales support, including machine installation, commissioning, operator training, and regular maintenance. Our technical team is always ready to address any technical issues, ensuring the long-term operation of the equipment.

What is your typical delivery time?

Standard machines are usually delivered within 25–30 days. Customized models may vary depending on complexity.

How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
