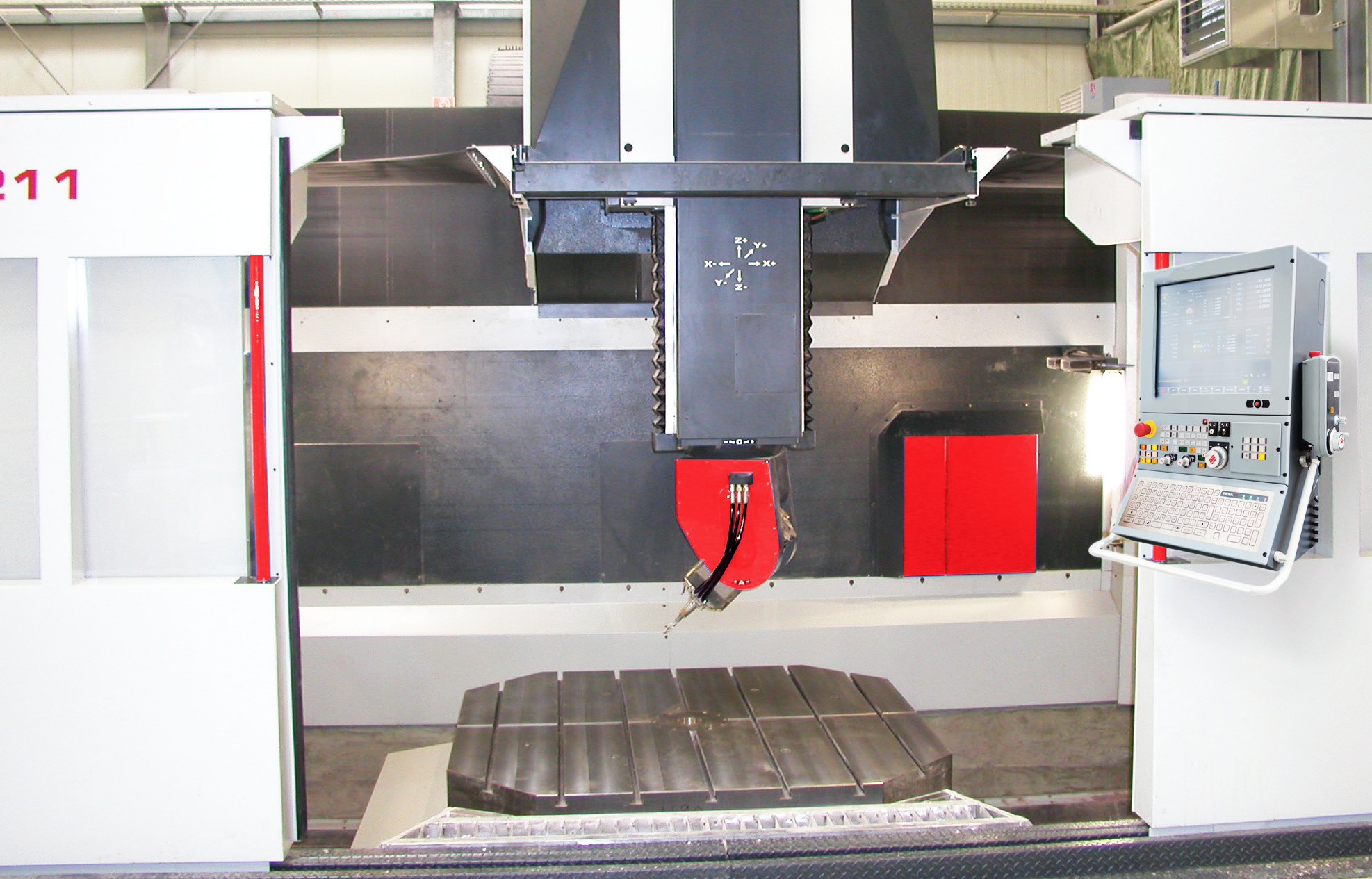

Large mold oversize Five-Axis High-End Machine Tool

1.X modular axis can optionally be equipped with Rack and Pinion, driven by two motors preload system.

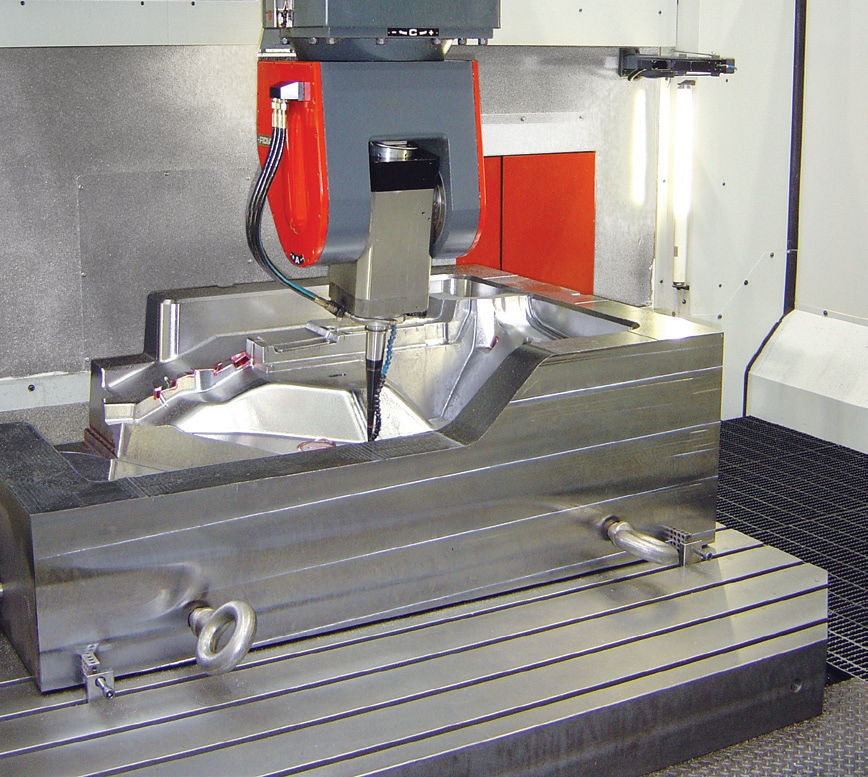

2.Machining of large dies and extra-dimensioned components are carried out efficiently .
3.The use of the 6th axis as rotary workpiece table guarantees max accessibility from all sides. Head and table combined rotations are automatically handled by the NC by rotating the system coordinates.
4.In just one placement it is possible to operate on a such working area that is usually offered only by bigger gantry machines.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Previous:
Next:
Five-Axis CNC Machine Large mold Five-Axis High-End Machine Tool Five-Axis Machine Tool oversize
Description


Product Characteristics


 5-axis machining center is engineered for high-efficiency complete machining of large dies and oversize heavy components, integrating modular linear axis design, dual-motor preloaded rack-and-pinion drive, 6th-axis rotary workpiece table and intelligent NC coordinate transformation system. It delivers the ultra-wide working envelope that traditionally requires bulky gantry machines, within a more compact footprint. Single-setup full-part machining drastically cuts production lead time while boosting dimensional accuracy.


Key Technical Features


1.Modular X-axis with optional dual-motor preloaded rack & pinion drive

Adopts modular X-axis design for flexible stroke customization. Customers may optionally equip rack-and-pinion transmission with a twin-motor preload system, which eliminates backlash automatically during bidirectional movement. It guarantees exceptional rigidity and consistent positioning accuracy under heavy-duty long-travel cutting.

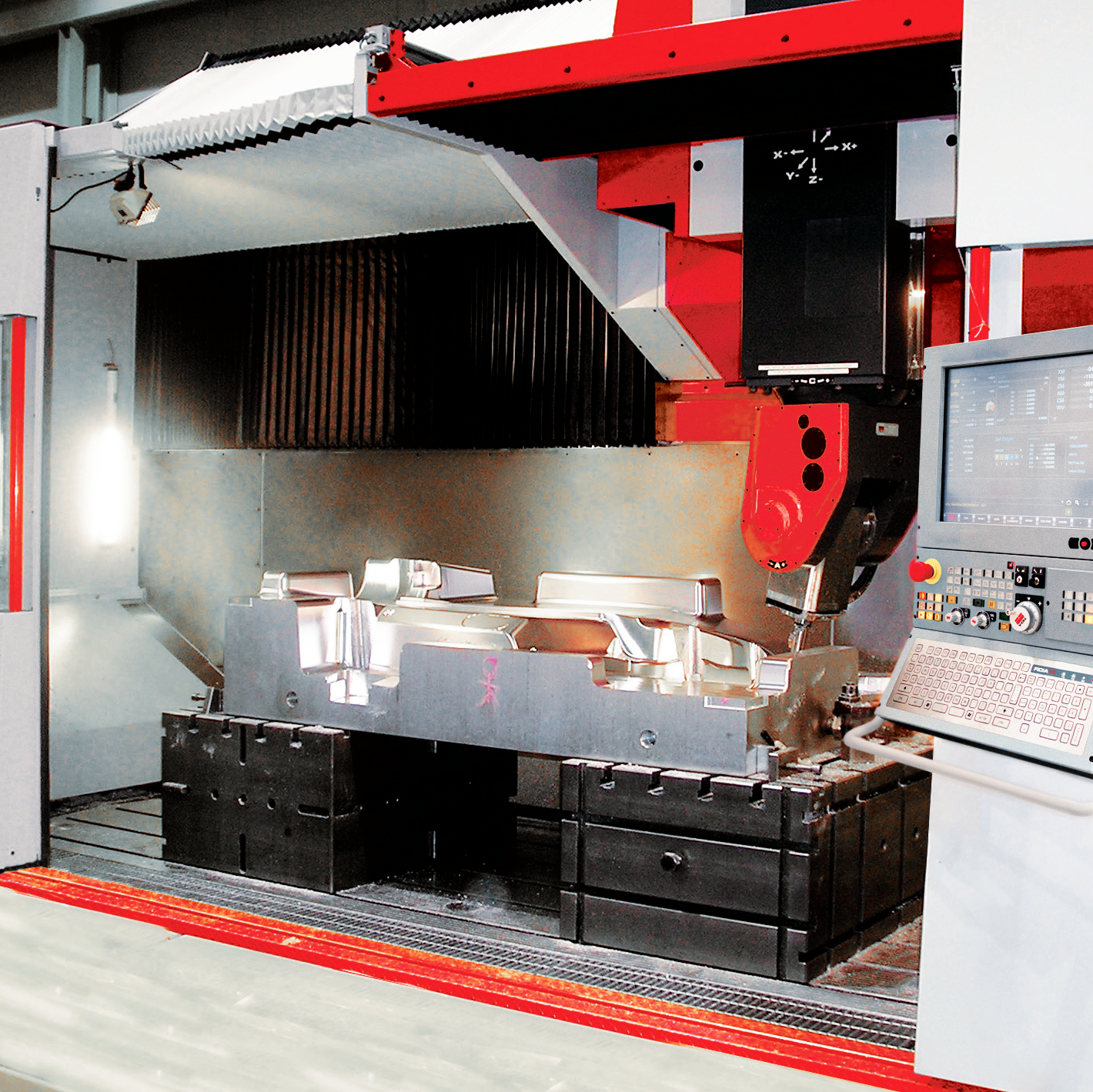

2.High-efficiency machining of large dies

Optimized mechanical architecture is specially tuned for heavy cutting of large molds and oversized components. Excellent vibration suppression delivers high metal removal rate in roughing and superior surface finish in finishing, significantly shortening total machining cycle time for large workpieces.


3.Ultra-large working range within compact machine footprint

A single workpiece clamping operation unlocks the extensive working area usually exclusive to much larger gantry machines. Multiple re-fixturing, re-alignment and secondary setup processes are eliminated, minimizing cumulative clamping errors and drastically reducing non-cutting auxiliary time.



Product Parameters
K211

Linear axes travel
X(*) 2700 mm
Y(*) 1100 mm
Z 1000/1400 mm
Axes speed X Y Z

50 m/min (1968 ipm) 40 m/min (1575 ipm) 30 m/min (1181 ipm)
Positioning accuracy
X Y Z ± 0,006 ± 0,005 ± 0,004 mm
Work-piece table
Dimensions 3500 x 1500 mm
T-Slots n° 6 - pitch 250 mm (10”)
Loading capacity 22000 kg
Tool magazine
No of positions 42 - 84
Weight 26000 kg (57319 lbs)



Application Cases

1. Precision machining of critical components

Aerospace components (such as turbine blades, blade discs, and engine casings) have extremely high requirements for dimensional accuracy and surface quality. CNC machine tools achieve the machining of complex geometric shapes through multi-axis interpolation and micron-level precision control.

Airframe structural components: Large gantry-type five-axis machine tools can machine structural components such as aircraft wings and tail fins, completing multi-surface machining in a single setup to reduce error accumulation.




FAQ


Do you have export experience? What documents can you provide?

Yes, our machines have been exported worldwide. We provide invoices, packing lists, certificates of origin, CE certifications, etc.


What is the service life of the machine tool?

Normal usage conditions allow for a lifespan of ten years.


What materials can this machine process?

It efficiently machines stainless steel (304/316), aluminum (6061/7075), titanium (Grade 5), and engineering plastics (PEEK/POM).


Do you provide on-site installation or training?

We offer comprehensive manuals and remote guidance. On-site support is available in selected regions.
