High-Speed Vertical Machining Center for Mold and Aerospace

Product Overview

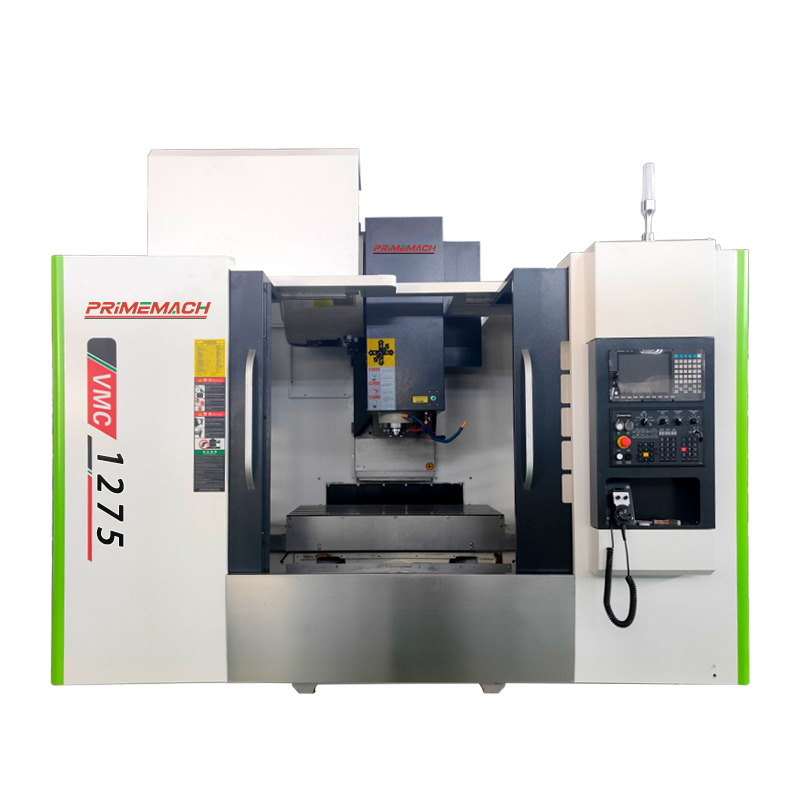

The high-precision vertical machining center is a cutting-edge machine tool designed specifically for small and medium-sized molds as well as aerospace components. Equipped with multiple ball linear guides, it integrates ultra-precision and high-speed machining capabilities, making it an ideal choice for industries requiring tight tolerances and complex geometries.

Key Features

Ultra-Precision Machining

The full-closed-loop linear scale system ensures superior positioning accuracy and repeat positioning accuracy. Combined with a high-speed spindle, it enables fast, precise and stable cutting of hard metals, maximizing machining efficiency. It supports high-speed milling of hard materials such as stainless steel and tungsten carbide.

Dynamic Performance

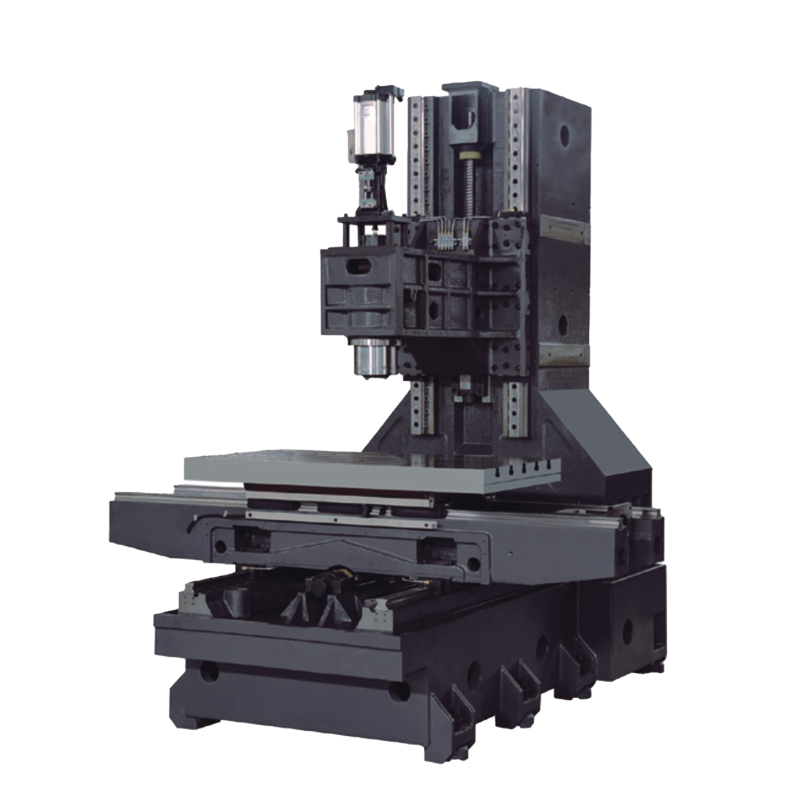

Linear guides and direct-drive motors enable rapid acceleration and high feed rates, significantly reducing cycle times and doubling machining efficiency. The Meehanite cast iron bed and integrated spindle cooling system minimize thermal deformation to the greatest extent.

Intelligent Automation

The 24-tool ATC and automatic tool length measurement reduce setup time. Powered by Siemens CNC system: smart adaptive machining & tool path optimization for boosted efficiency.

1. Mould Manufacturing Industry

Processing Objects: Mould cores and mould frames for medium-sized injection moulds and die-casting moulds, as well as templates for metal moulds.

Application Value: The large worktable can securely clamp mould steel blanks, enabling precise milling, drilling, and boring of all components such as cavities, runners, and slides, making it the absolute mainstay of mould manufacturing.

2. Automation and Robotics Industry

Processing Objects: Robot joint arms, reducer housings, automation equipment frames, bases, and sheet metal components.

Application Value: Efficiently processes aluminium alloy or steel structural components, ensuring the flatness of all mounting surfaces and the positional accuracy of hole patterns, thereby guaranteeing the motion accuracy and rigidity of the equipment.

3. Precision Parts and Valve Body Industry

Processing Objects: Hydraulic valve blocks, pump housings, instrumentation mounts, and high-precision fixtures and jigs.

Application Value: The workbench size is ideal for parallel processing of multiple valve blocks, enabling complex flow channels, seal grooves, and thread milling and tapping to be completed in a single setup, eliminating internal leakage.

4. Automotive and New Energy Industry

Processing Objects: Subframes, battery trays, electronic control enclosures, motor end caps.

Application Value: Capable of efficient milling of aluminium alloy structural components, providing critical production capacity support for the lightweight manufacturing of new energy vehicles.

Do you have export experience? What documents can you provide?

Yes, our machines have been exported worldwide. We provide invoices, packing lists, certificates of origin, CE certifications, etc.

What is your company's after-sales service support?

1). Supply wearing parts, spare parts and spare parts at the cost price (outside the warranty period);

2). Party B provides Party A with consulting services on processing technology and programming;

3). After the expiration of the warranty period, Party B still provides after-sales service;

4). Regular use of status tracking service, irregular user follow-up.

How can I choose the most suitable machines ?

Please tell me your specifications ,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.

What is your standard package?

Our package is export standard plywood case with pallet.
