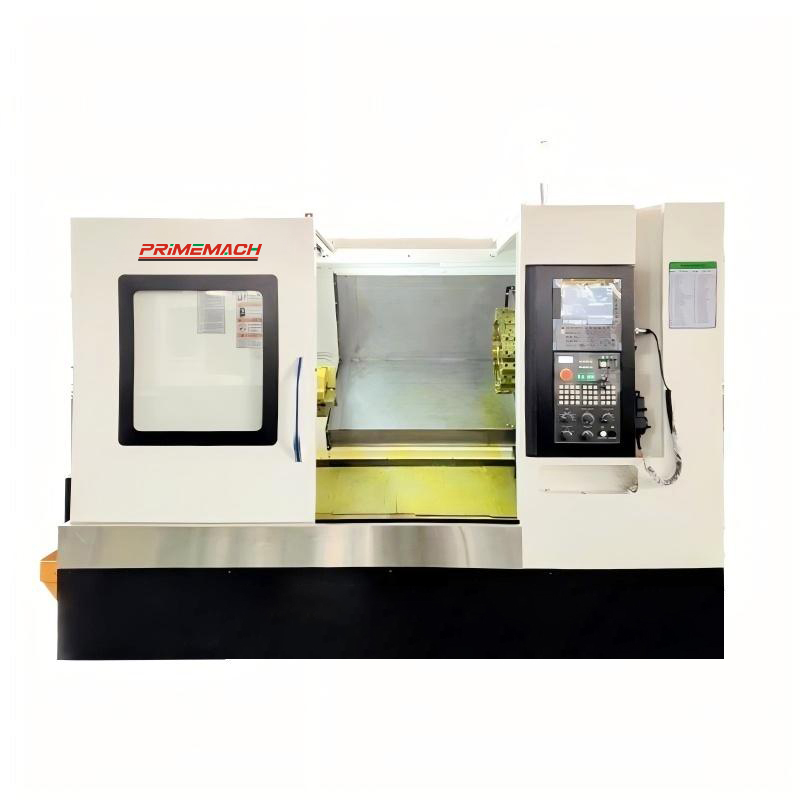

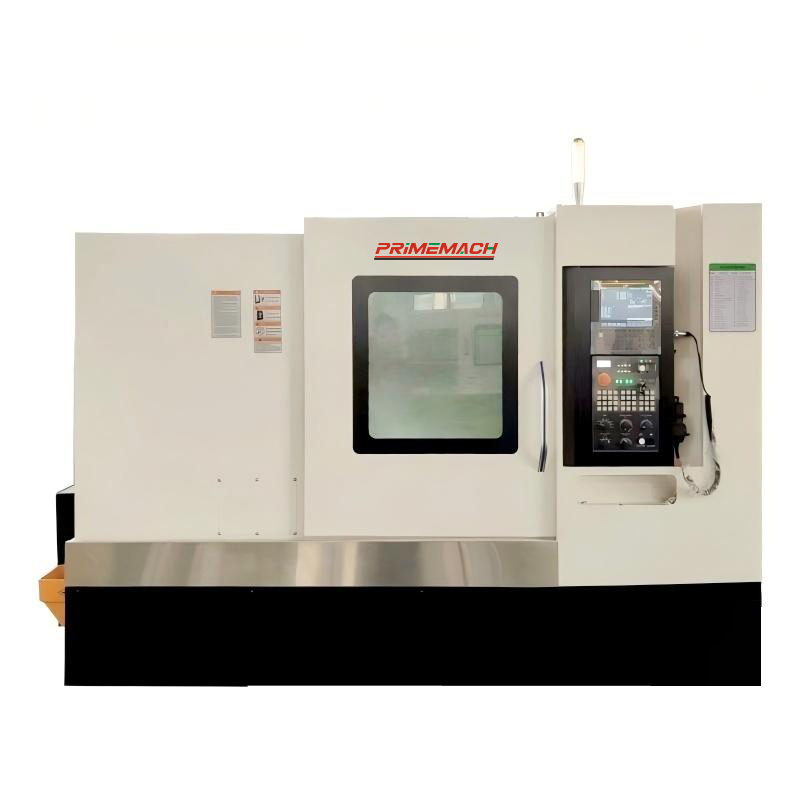

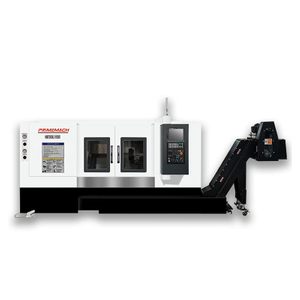

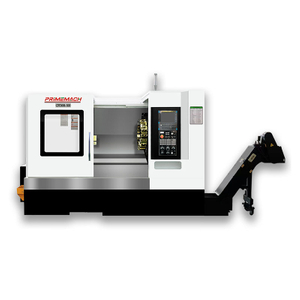

The Slant Bed CNC Turret Lathe is a high-performance machining solution engineered for precision, durability, and versatility in heavy-duty industrial applications. Equipped with the advanced FANUC Oi-TF CNC Control System, this lathe delivers exceptional accuracy and operational efficiency, making it ideal for industries requiring consistent results in large-scale or complex machining tasks.
It offers a generous swing diameter and ample machining capacity, accommodating a broad spectrum of workpiece sizes from medium to large components. The robust spindle, paired with a high-power motor, delivers formidable cutting performance even when processing tough materials such as hardened steel or high-strength alloys. Whether for batch production or custom part manufacturing, this lathe blends rigidity, speed and precision seamlessly to meet the rigorous demands of modern manufacturing.
This lathe excels at handling workpieces of diverse sizes, featuring a spacious spindle bore and ample bar machining capacity. It supports heavy workpieces, making it well-suited for manufacturing bulky components such as industrial shafts, hydraulic cylinders, and large gears. The generous machining envelope ensures remarkable flexibility for processing both short and long parts, eliminating the need for repeated machine setups.
At the core of its performance lies a high-rigidity spindle, featuring an A2-8 spindle nose design for secure workpiece mounting. The standard hollow chuck delivers strong gripping force, reducing vibration during high-speed rotation and boosting machining accuracy. The spindle’s thoughtful design strikes an optimal balance between power and precision, making it ideal for both roughing and finishing operations.
The X-axis and Z-axis both feature ample travel ranges and impressive rapid traverse capabilities, enabling swift positioning and smooth movement that minimizes non-cutting time and boosts overall productivity. Their precise ball screw drives further enhance positioning accuracy, a critical advantage for machining parts with tight tolerances.

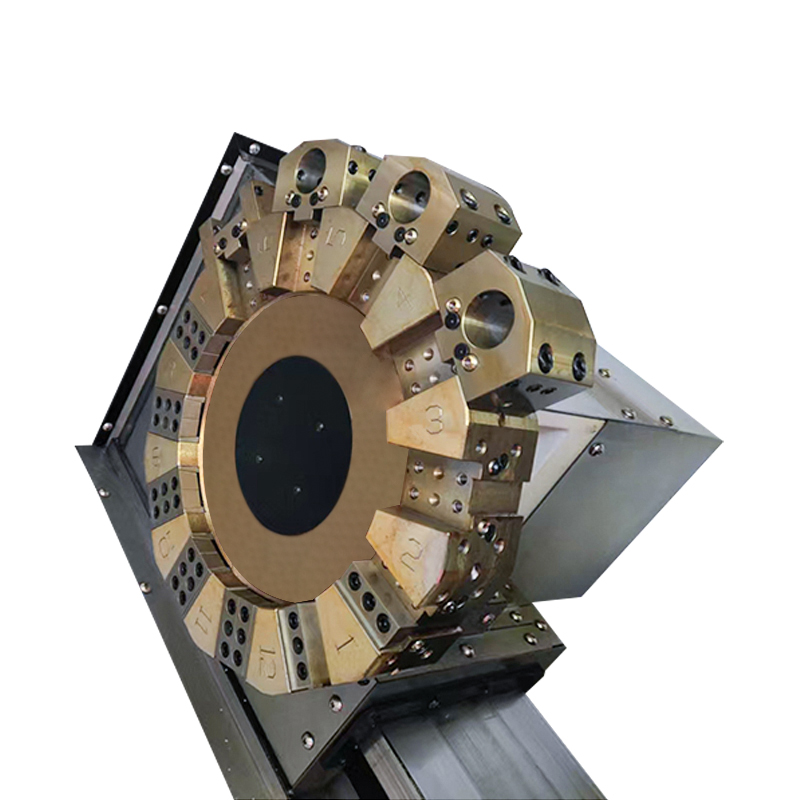

Equipped with a multi-station turret, the lathe supports versatile tooling configurations, accommodating both external and internal tool holders. This flexibility allows operators to perform turning, facing, threading, and drilling operations in a single setup, reducing workflow interruptions and improving part consistency.
This lathe is engineered with durability, precision and user-friendliness as core priorities. Its heavy-duty frame effectively minimizes vibration and flexing during high-load operations, ensuring consistent machining accuracy. The integration of box guideways enhances overall stability, especially when processing heavy workpieces, while the slant bed design optimizes chip evacuation, keeping the work area clean and reducing thermal distortion.
The FANUC Oi-TF CNC Control System features an intuitive interface, simplifying programming and operation for both experienced and novice operators. Quick-access controls for rapid traverse speeds streamline setup, while the enclosed workspace (with optional automatic door) enhances safety and reduces coolant splatter.
NC | CNC Control System | FANUC Oi-TF | Unit |
Machining Capability | Max. Swing Diameter | ø 600 | MM |
Max. Machining Diameter × Length | ø 360 (shaft type) ×800ø 380 (disc type) | MM | |
Spindle Bore Diameter | ø 80 | MM | |
Max. Bar Machining Diameter | ø 70 | MM | |
Max. Supported Weight | 300 | KGF | |
Spindle | Max. Spindle Speed | 3000 | RPM |
Spindle Nose Type | A2-8 | / | |
Chuck Size | 10″ Hollow Chuck | INCH | |
Feed | X-axis Max. Travel | 430 | MM |
X-axis Rapid Traverse Speed | 20 | M/MIN | |
Z-axis Max. Travel | 850 | MM | |
Z-axis Rapid Traverse Speed | 25 | M/MIN | |
Turret | Number of Tool Positions | 12 | T |
External Tool Holder Height | 25*25 | MM | |
Max. Internal Tool Holder Diameter | ø 40 | MM | |
Tailstock | Tailstock Travel | 500 | MM |
Tailstock Quill Travel | 100 | MM | |
Tailstock Quill Taper | MT-5 | / | |
Motor | Spindle Motor Power | 15 | KW |
Total Machine Power | 35 | KW | |
Others | Coolant Tank Capacity | 240 | L |
Machine Height | 2150 | MM | |
Floor Space (L × W) | 3200*2000 | MM | |
Total Machine Weight | 5300 | KG | |
Optional Configurations | GSK/SYNTEC System | 12-Inch Hollow Chuck | Tailstock Center |
High-Pressure Water Output 30/50Bar | Bar Feeder, Part Catcher | Automatic Door |
1. Customisation and rapid response
Non-standard part processing: For special operational requirements (e.g., mining machinery, deep-sea equipment), CNC machine tools can quickly adjust machining programmes to complete customised production of small batches or single pieces.
Mould manufacturing and repair: Cavity machining of casting moulds and stamping moulds relies on CNC milling and EDM, shortening the mould development cycle and supporting rapid production of new models.
2. Enhancing Equipment Reliability and Lifespan
Key components processed by CNC machine tools (such as rotary bearing raceways and engine cylinder blocks) exhibit higher fatigue strength and wear resistance, directly extending the service life of construction machinery under harsh operating conditions.
Surface treatment combined with machining: For example, precise base material machining prior to shot peening reinforcement using CNC machine tools enhances components' resistance to stress corrosion.
Do you have export experience? What documents can you provide?
Yes, our machines have been exported worldwide. We provide invoices, packing lists, certificates of origin, CE certifications, etc.
What systems are available for selection?
Our products have Fanuc Oi-TF,SIEMENS,Mitsubishi,SYNTEC,GSK,KND.
What material is used for the machine tool bed?
Machine tool casting using HT300.
What materials can this machine process?
It efficiently machines stainless steel (304/316), aluminum (6061/7075), titanium (Grade 5), and engineering plastics (PEEK/POM).
What is your standard package?
Our package is export standard plywood case with pallet.
