Universal Precision 0.005mm Vertical CNC Machining Center

Product Overview

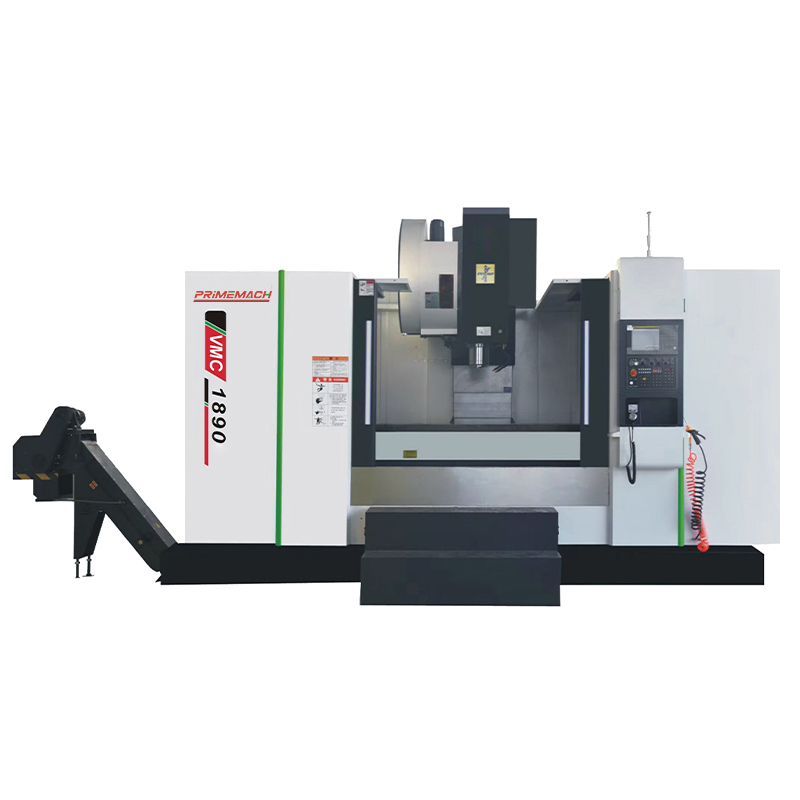

The VMC-1890 is a high-performance CNC vertical machining center engineered for heavy-duty machining tasks, including large mold production, industrial component manufacturing, and precision part processing. Built to handle demanding workloads, this machine combines extensive operational range with exceptional accuracy, making it ideal for sectors requiring both scale and precision—such as automotive, aerospace, and energy industries.

With a 1800mm X-axis travel and 900mm Y-axis travel, the VMC-1890 accommodates large workpieces, while its robust structure supports a maximum load capacity of 1600kg on a spacious 2000*900mm worktable. Equipped with a BT50 spindle and powered by an 18.5kW spindle motor, it delivers reliable performance for high-torque cutting, complemented by the trusted FANUC Oi-TF control system for seamless operation and precise motion control.

Product Specifications

Axis Movements

· X-Axis Travel: 1800mm

· Y-Axis Travel: 900mm

· Z-Axis Travel: 720mm

· Rapid Traverse Rate (X/Y/Z): 20m/min, ensuring efficient positioning and reduced non-machining time.

Worktable Details

· Worktable Size: 2000*900mm, providing ample space for large workpieces.

· Maximum Load Capacity: 1600kg, suitable for heavy-duty machining tasks.

· T-Slot Configuration: 5 slots with dimensions 22mm and spacing of 165mm, enabling secure clamping of diverse workpieces.

Spindle & Motor Performance

· Spindle Taper: BT50, compatible with a wide range of cutting tools for versatility.

· Spindle Speed (Optional): 8000RPM, balancing speed and torque for various materials.

· Spindle Motor: 18.5kW, delivering robust power for high-efficiency cutting.

· Three-Axis Motors (X/Y/Z): 5.9kW each, ensuring consistent and precise axis movement.

Precision & Control

· Positioning Accuracy: JIS±0.003mm/300, guaranteeing tight tolerances for critical parts.

· Repeatability: JIS±0.005mm/300, maintaining consistency across multiple production runs.

· Control System (Optional): FANUC Oi-TF, offering advanced programming capabilities and user-friendly operation.

Machine Dimensions

· Machine Weight: 12T, reflecting a sturdy build for stability during heavy cutting.

· Overall Dimensions (LWH): 4900*3470*3400mm, designed to fit industrial workshop layouts while maximizing operational space.

Design

The VMC-1890’s design prioritizes durability, precision, and versatility to meet industrial demands.

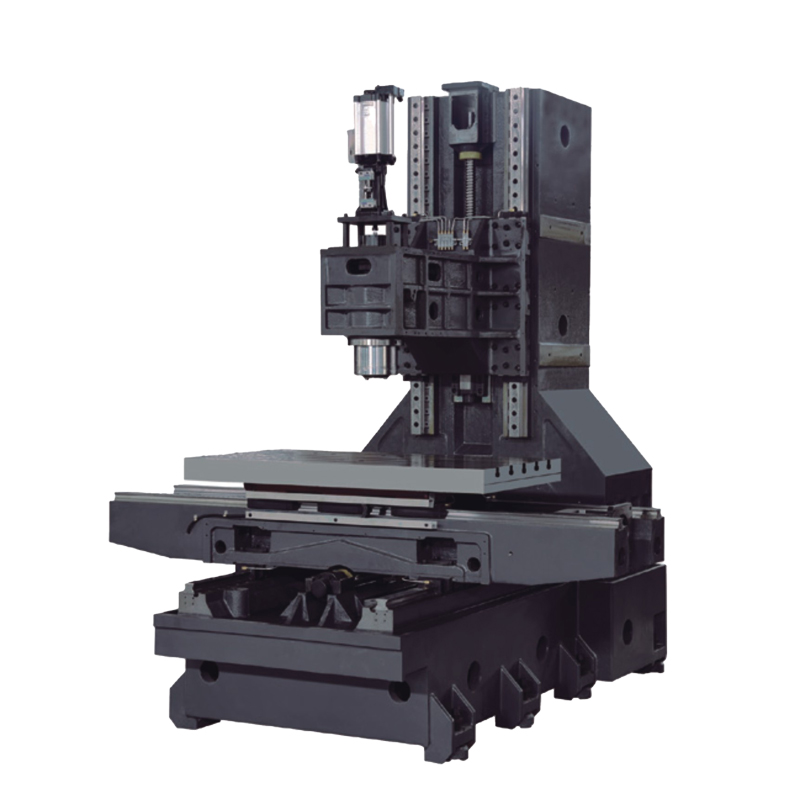

Structural Integrity

Its heavyweight construction (12T) minimizes vibration during high-torque machining, enhancing stability and reducing errors. The rigid frame supports the large worktable and heavy loads, ensuring consistent performance even in extended production cycles.

Tool Compatibility

Featuring a BT50 spindle taper, the machine integrates seamlessly with a broad range of cutting tools, from drills to end mills, making it adaptable to diverse materials—including metals, composites, and alloys. The 24-tool magazine capacity further streamlines workflow by reducing tool change time.

User-Centric Control

The integration of the FANUC Oi-TF control system simplifies operation with intuitive programming, while supporting advanced features like real-time error compensation. This design ensures that both seasoned operators and new users can achieve optimal results with minimal training.

1. Heavy machinery and construction machinery

Processing objects: Excavator booms, bucket arms, frames, bases, and track roller frames of large equipment.

Application value: A single clamping operation can complete all milling, drilling, boring, and tapping processes for the entire contour surface of large welded or cast/forged parts, ensuring the positional accuracy and flatness of all hole systems and mounting surfaces.

2. Rail Transportation and Freight Vehicle Manufacturing

Processing Objects: Bogie components, brake system mounting plates, freight vehicle door frames, and large connecting plates.

Application Value: The large table surface can securely fix extra-long workpieces, capable of powerful milling of high-strength steel, ensuring the safety and reliability of critical load-bearing structural components.

3. Energy Equipment and Infrastructure Construction

Processing objects: wind turbine gearbox housings, hydraulic station base plates, generator set bases, and large mould base plates.

Application value: Provides sufficient power and rigidity for rough machining with large allowances, while also achieving the precision required for finishing operations, making it a core piece of equipment for the manufacturing of large-scale foundation components in energy equipment.

4. Specialised Fields and Moulds

Processing objects: Glass moulds, large thermoforming moulds, woodworking machine bed frames, printing machine wall panels.

Application value: The spacious processing area facilitates efficient precision milling using large face milling cutters, ensuring the flatness and surface finish of extremely large flat surfaces.

Where is the company located?

In Tongling, Anhui Province, which is close to Shanghai and Hangzhou, it only takes about three and a half hours by bullet train to reach there.

How long is the warranty period for this product?

The machine tool host is guaranteed free of charge for one year, and the CNC system is guaranteed for one year (except for abnormal use)

How does Primacon provide after-sales service for CNC machine ?

We offer worldwide after-sales support, including machine installation, commissioning, operator training, and regular maintenance. Our technical team is always ready to address any technical issues, ensuring the long-term operation of the equipment.

Do you provide operator training?

Yes. We welcome your engineers or operators to have operator training at our site. And we are able to provide online technical support as well.
