Truss type one-to-one Automated Machine CNC Lathe Customizable Equipment

Truss type one-to-one Automated Machine CNC Lathe Customizable Equipment

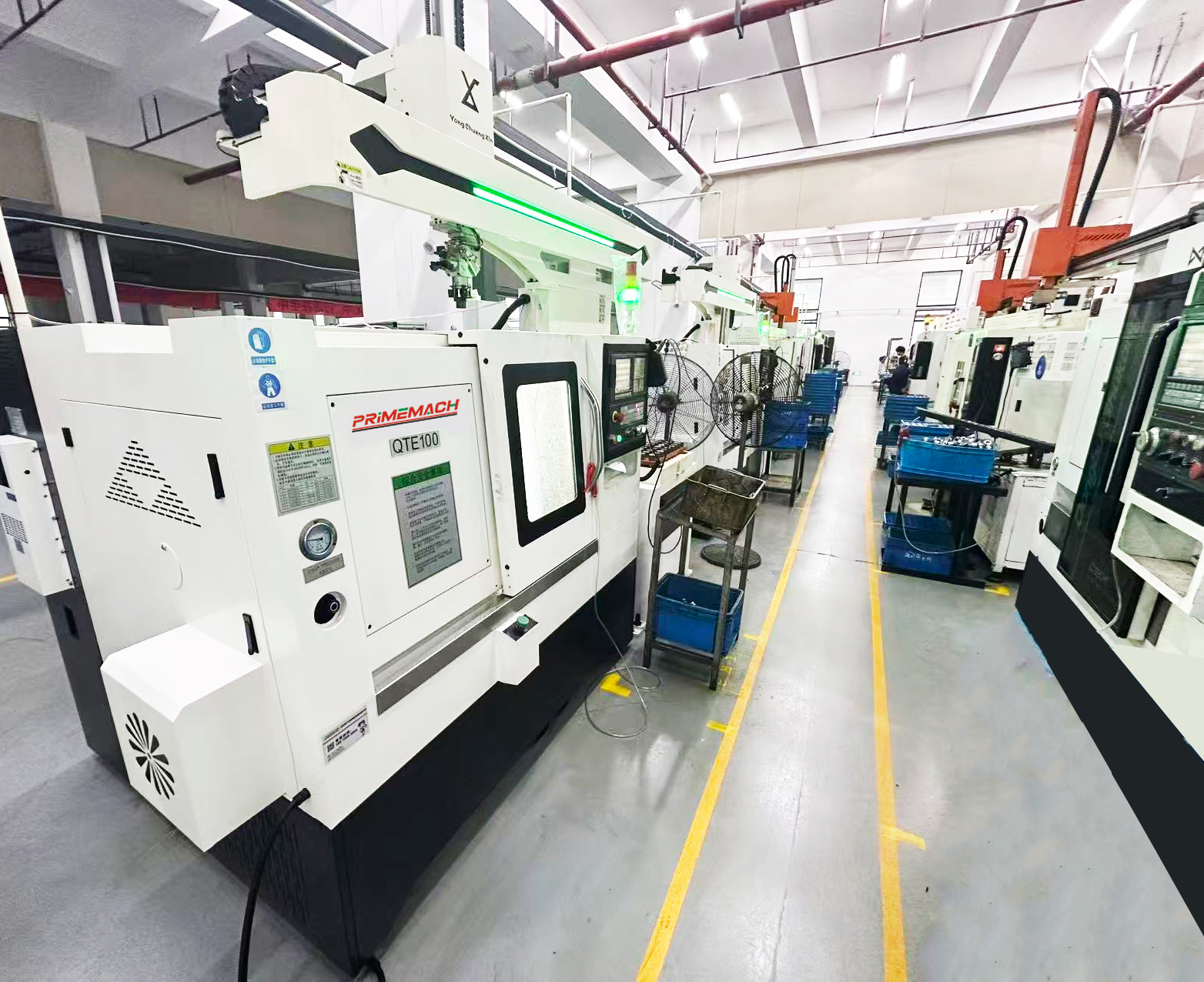

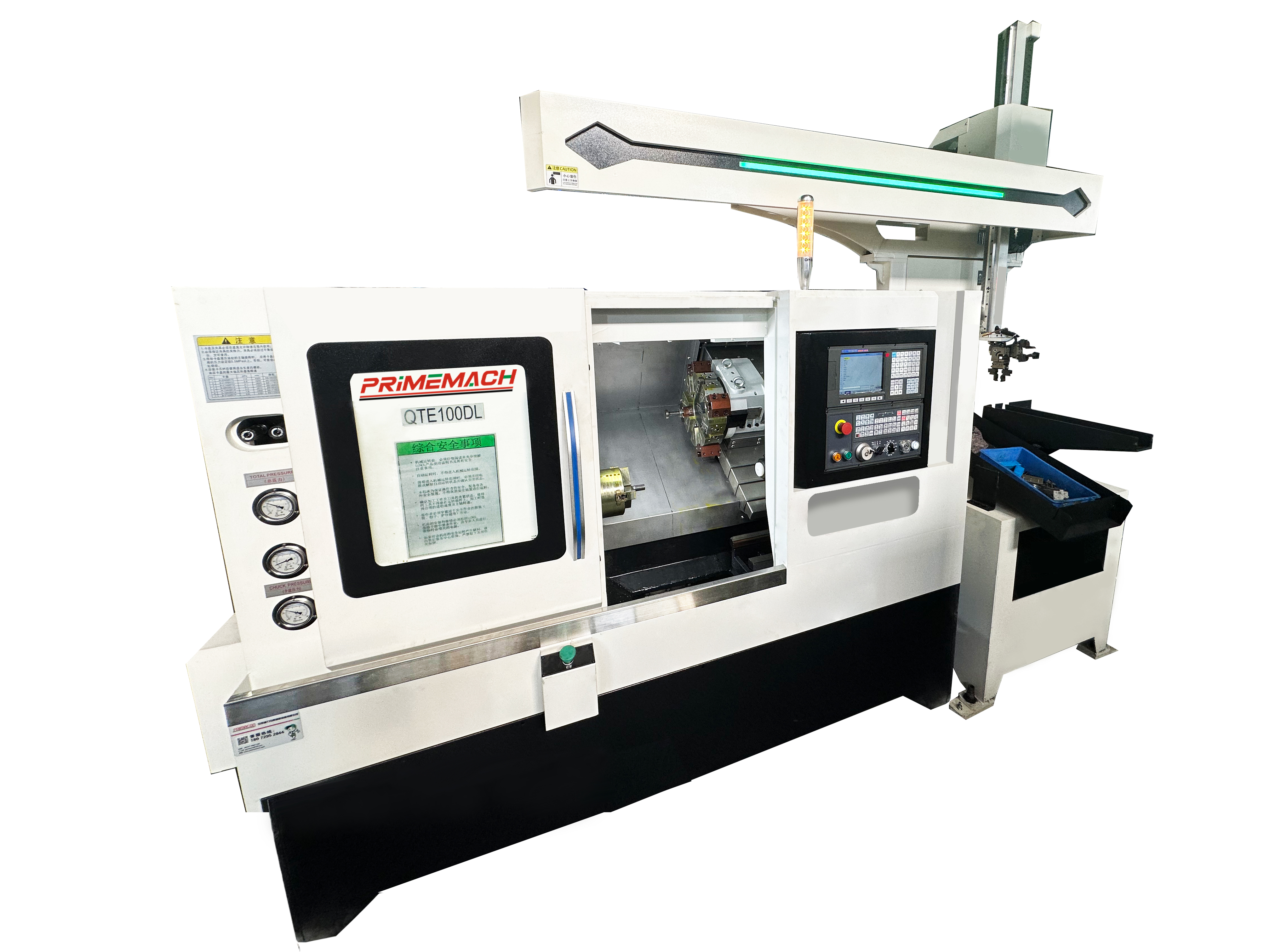

1.The mechanical arm of this program is mainly used for automatic loading and unloading of CNC lathes .
2.The robot part is separated from the lathe , more stable , the main body of the crossbeam is driven by the servo motor gear and double rail mechanism . the robot can at multiple points , with high repeated accuracy . the whole machine is fixed on the lathe bed , integrated with the lathe , which the stability of the robot and the lathe .
3. Use AC servo motors + high-precision gear rack + high-precision linear guides.
4.Customized warehouse: simply place the blank workpiece on the warehouse.
5.Fingers: A dual combination of finger cylinder and rotary cylinder is used to meet the requirements of grasping parts and material transfer within the machine tool.
6.The robot takes materials from the magazine , and after the machine tool processing is completed , it replaces and picks up the materials .
7.Using packaging technology, the product is manufactured, transported, installed, and debugged as a whole. The silo and mechanical arm are integrated, and the time for on-site debugging at the customer's location is short.

Quantity:
Availability:





Inquire Add to Basket

Model:
automated machine

automated machine Automated CNC Lathe CNC Lathe with Automation System CNC Turning Machine with Robot Loading Automated Turning Center CNC Lathe Automation Solution

Description

Product Overview

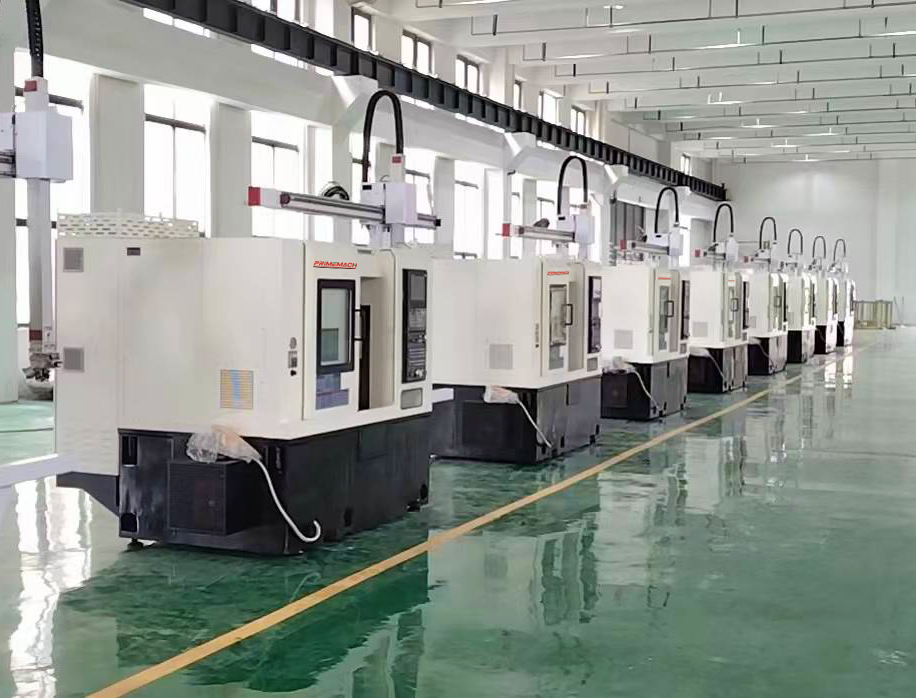

The truss-type one-to-one automated manipulator is a high-efficiency equipment specially designed for automated CNC lathe loading/unloading scenarios. Relying on its stable structure, precise control, and flexible adaptability, it can significantly improve the automation level and production efficiency of CNC lathe processing, enabling unmanned CNC lathe operation, reducing the cost of manual intervention, and supporting CNC lathe workpiece automation for various components such as gear shafts, valve sleeves, pistons, and input shafts.

Key Features

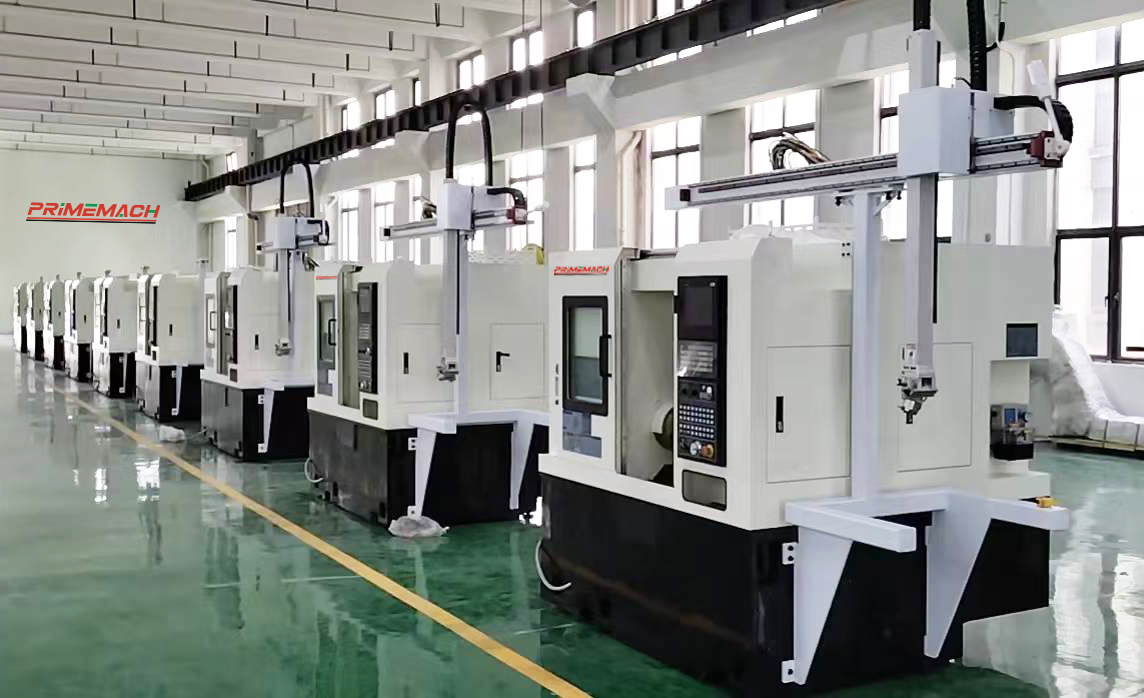

Automatic Loading and Unloading Cycle

The equipment achieves a complete automatic cycle: taking blanks from the magazine → loading and processing on the CNC lathe → removing finished products → placing them back into the magazine. It does not require frequent manual intervention, greatly improving processing continuity, avoiding manual errors, and ensuring consistent quality in precision CNC lathe automation.

Multi-Magazine Adaptability

It supports three types of material boxes: array-type, roller-type, and lifting-type. The appropriate box can be selected according to the workpiece type, meeting diverse production requirements for automated machining for shafts and valve components.

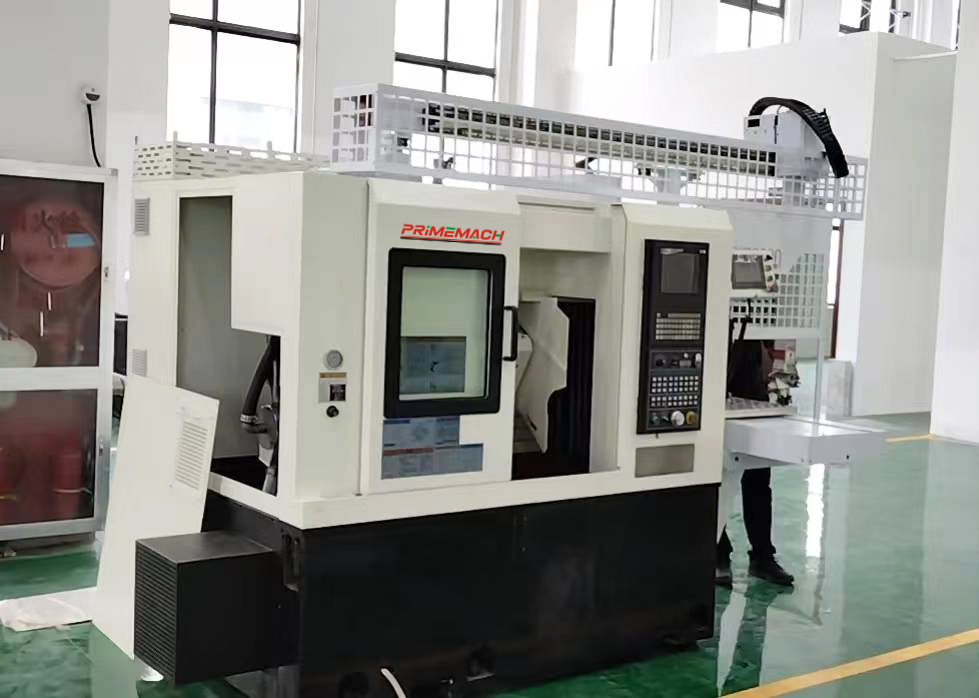

Precise Positioning and Efficient Operation

The machine’s core power system is driven by a servo motor, paired with a high-precision rack-and-pinion drive mechanism and high-precision linear guides. It maintains full-process precision control from power output to motion trajectory, achieving consistent and stable repeat positioning performance. Its precise position control capability ensures positioning accuracy during workpiece loading and unloading, effectively avoiding machining errors caused by position deviations and providing reliable support for the efficient operation of automated production lines.

Product Parameter

Item	Specification parameters	Unit
Route X-axis	2500	MM
Up and down travel on the Z-axis	1000	MM
Outer dimensions (L x W x H)	375016503500	MM
Max load on arms	2.5kg*2(No gripping claws)	KG
Repeatability accuracy	±0.05	MM
Speed of each axis	The maximum speed of the Z-axis is 90, and the maximum speed of the X-axis is 120.	M/MIN
Power capacity	1PH 200-240V 50/60HZ 3KVA	/
Working pressure	0.59	Mpa
With gripper attachment	Product customization claw + flip wrist unit	/
Lubrication	Automatic centralized oil lubrication	/
control system	Embedded real-time system, high integration, high reliability advanced control	/
operator	Industrial grade electrical controller	/
Interface standards	Optional customizing	/

Application Cases

1.Automotive Industry

It can meet the requirements for machining accuracy and production continuity in the automotive industry, and help realize the mass compliant production of automotive parts.

Gear Shaft Machining: It accurately grabs the gear shaft blanks and performs loading/unloading for the lathe, avoiding positioning deviations caused by manual operations and improving the consistency of gear shaft machining accuracy.

Input Shaft Machining: It stably grabs the input shaft to avoid scratching the shaft surface, shortens the loading/unloading time, and prevents machining accuracy deviations of the input shaft.

Bushing Machining: It reduces the frequency of manual material replenishment, ensures that the dimensional accuracy of bushings meets the standards, and lowers the defective product rate.

2.Transmission Industry

It meets the requirements for machining surface quality and production efficiency of bearing inner rings and outer rings in the transmission industry, facilitating the stable production of bearing components.

Bearing Inner Ring Machining: It accurately delivers inner ring blanks to the lathe machining station, reduces invalid operation, ensures that the surface roughness of the inner ring raceway meets the standards, and improves transmission stability.

Bearing Outer Ring Machining: Bearing outer rings need to withstand large radial loads and require strict control over outer diameter dimensional tolerances. The truss-type one-to-one manipulator can avoid dimensional deviations in outer ring machining and ensure the quality of bearing components in the transmission industry.
