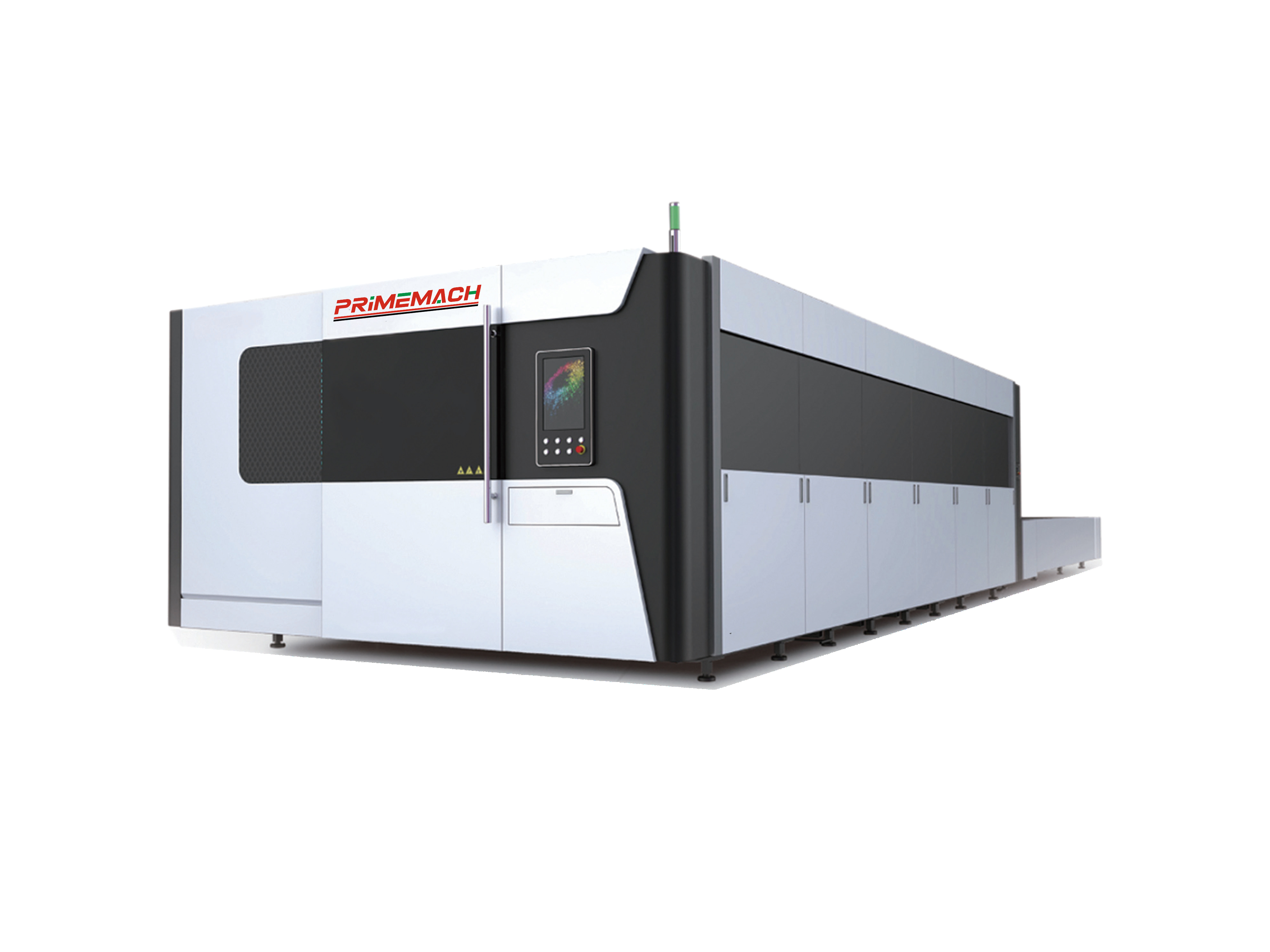

All Cover Exchange Worktable laser Cutting Machine

1.It can process and unload materials at the same time, with high speed, small cutting gap, smooth cross-section, easy operation and low energy consumption.

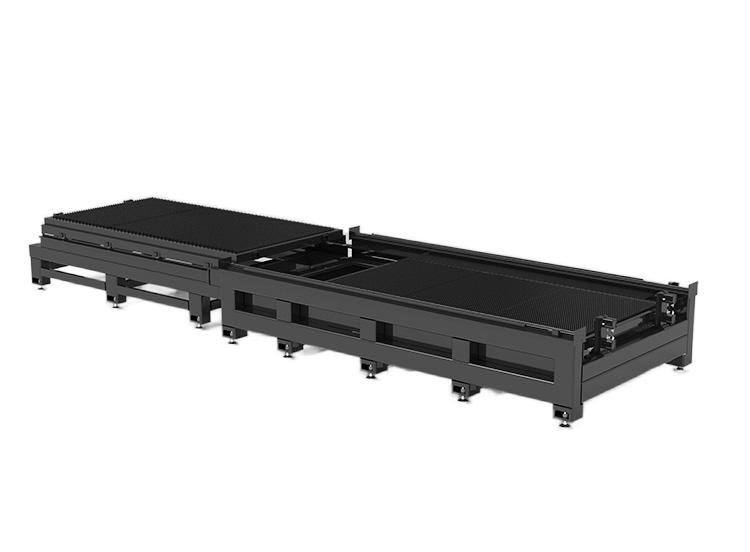

2.Intelligent platform exchange, enabling rapid exchange Saves loading and unloading time, improves production efficiency.
3.Designed for high-efficiency processing needs Self-developed stopper plug-in dual-beam design Long-term cutting without deformation, ensuring stable equipment operation.
4.The new smoke exhaust method of segmented smoke exhaust makes the smoke exhaust effect better and more environmentally friendly.
5.With beautiful appearance, good smoke exhaust effect, hygiene and high safety Complies with European CE and US FDA safety standards.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • Laser Cutting Machine

Previous:
Next:
Laser Cutting Machine Metal Exchange Worktable
Product Description

Product Overview


Brand new closed design, equipped with double worktables for quick exchange, allowing cutting and unloading at the same time. It has fast  speed, small slits, smooth cross-section, easy operation, low energy  consumption, and is suitable for large-volume continuous processing.


It features synchronous operation capability, allowing simultaneous material processing and unloading. It boasts fast cutting speed, small cutting gaps, and smooth cross-sections, along with easy operation and low energy consumption. Equipped with an intelligent platform exchange system, it enables rapid workbench switching, greatly reducing loading and unloading time and significantly improving production efficiency.



Product Parameter
Product Model Specification Parameters Unit
Working area 3030*1530 mm
The Y-axis stroke 3030
 mm
X-axis stroke 1530 mm
Z-axis stroke 300 mm
X-axis/Y-axis linkage speed 120 m/min
X-axis/Y-axis acceleration 1.5 G
X-axis/Y-axis positioning accuracy ±0.03 mm
X-axis/Y-axis repeated positioning accuracy ±0.03 mm
Laser power 3-6 KW



FAQ

Do you have export experience? What documents can you provide?

Yes, our machines have been exported worldwide. We provide invoices, packing lists, certificates of origin, CE certifications, etc.


Is customization available?

Yes. We have rich experience in custom processing and can provide flexible customization services from bed to processing parameters to appearance.


What is the service life of the machine tool?

Normal usage conditions allow for a lifespan of ten years.


What is your typical delivery time?

Standard machines are usually delivered within 25–30 days. Customized models may vary depending on complexity.





Related Products

automated machine CNC lathe Customizable equipment

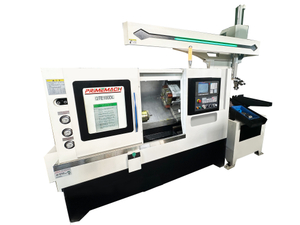

Truss type one-to-one Automated Machine CNC Lathe Customizable Equipment
