Product Overview

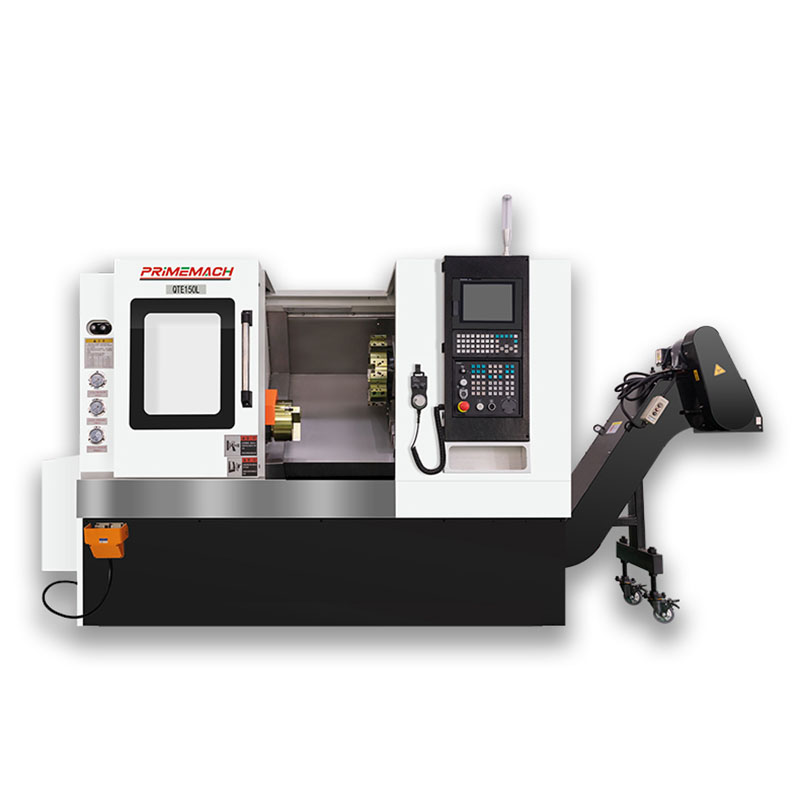

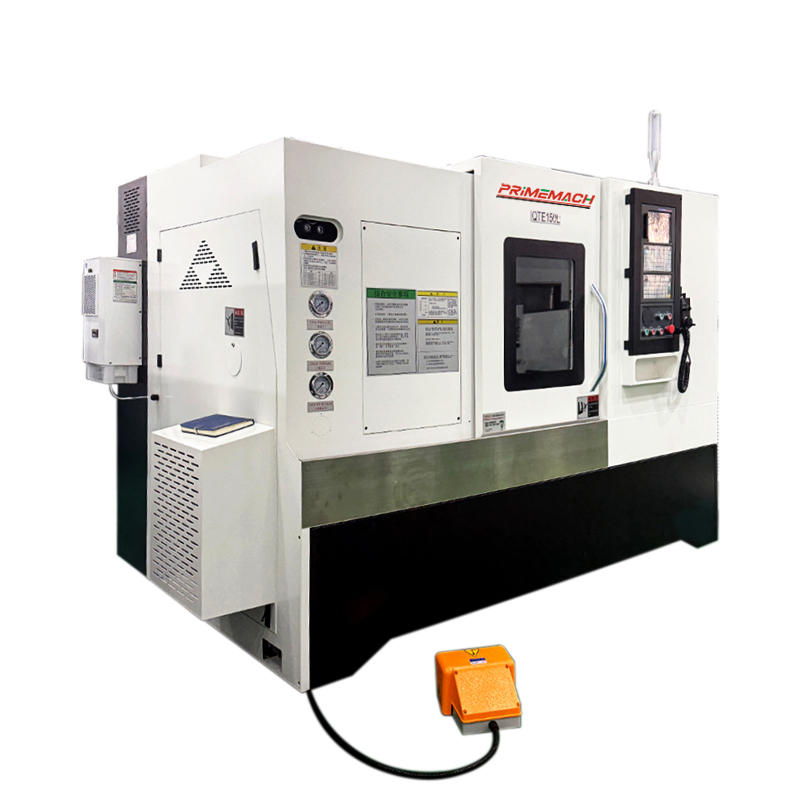

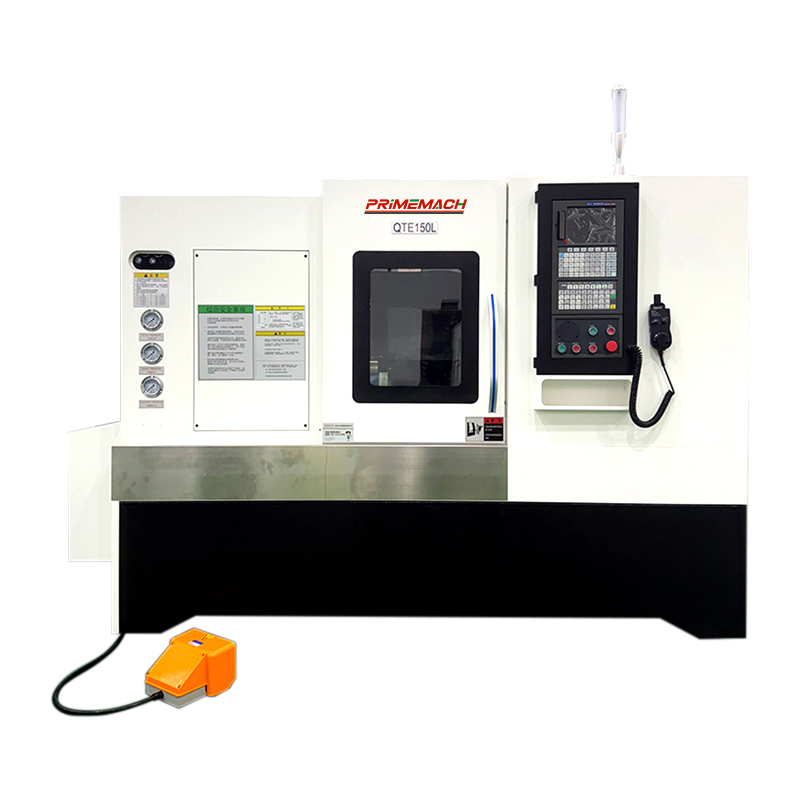

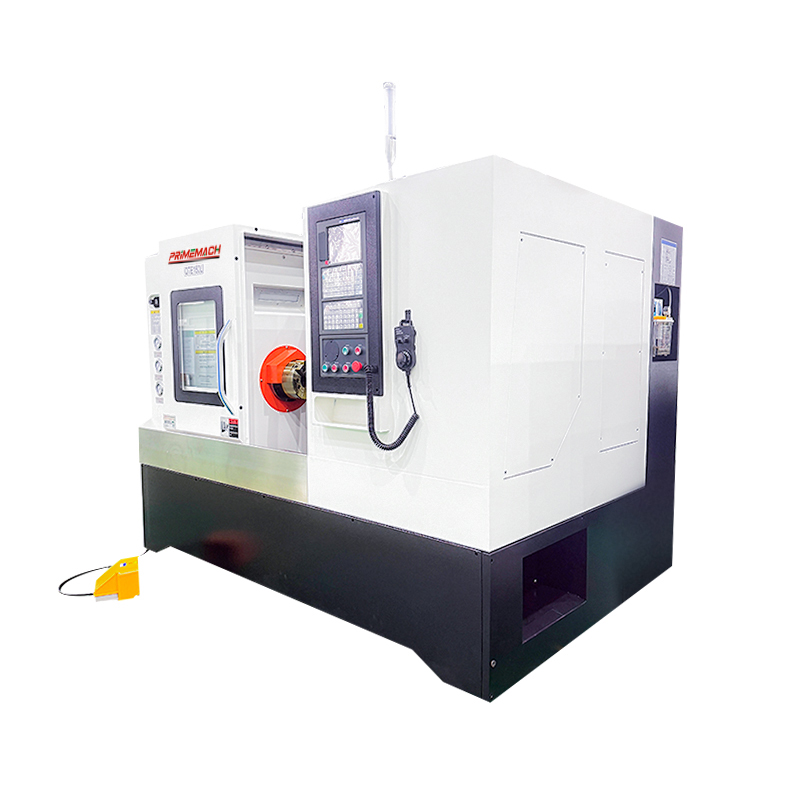

Designed to set new standards in high-precision turning of cylindrical components, the High-Power Spindle Precision CNC Turret Lathe combines raw power with refined accuracy to excel in industries such as automotive, medical device manufacturing, and general engineering. At its core is a 11KW spindle power system paired with a versatile BMT55 turret, delivering the performance needed for both high-volume production runs and intricate custom machining. For enhanced versatility, the machine supports live tooling and Y-axis milling as optional upgrades, transforming it from a dedicated turning center into a multi-tasking workhorse capable of producing complex parts in a single setup.
Product Features
This Spindle CNC Turret Lathe stands as a precision-engineered machining solution, integrating the FANUC Oi-TF CNC control system to deliver unparalleled accuracy and operational efficiency in industrial turning applications.
In terms of machining capacity, the lathe offers a maximum swing diameter of ø500mm, with capabilities to process workpieces up to ø400×480mm (diameter × length). Its spindle bore, sized at ø62mm, accommodates bar stock up to ø52mm in diameter, while supporting a maximum workpiece weight of 200KGF—making it versatile for handling both small to medium-sized components and heavier workpieces.

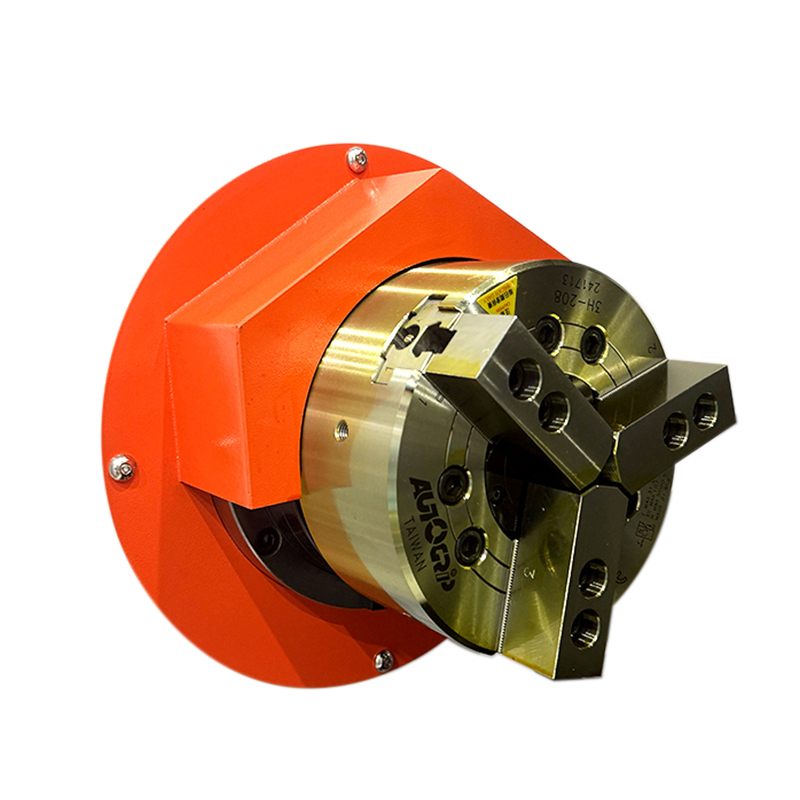

The spindle assembly ensures robust performance, with a maximum rotational speed of 4200RPM. Featuring an A2-6 spindle nose configuration and an 8-inch hollow chuck, it guarantees secure workpiece clamping, minimizing vibration and maintaining stability during high-speed machining.
For feed operations, the X-axis provides a maximum travel of 230mm with a rapid traverse speed of 20m/min, while the Z-axis offers an extended travel of 600mm at the same rapid traverse rate. This dual-axis efficiency facilitates precise, expeditious positioning, reducing non-machining time and enhancing overall productivity.
The turret system, equipped with 8 tool positions, supports external tool holders of 25×25mm (height) and internal tool holders up to ø40mm (diameter), augmenting tooling flexibility to accommodate diverse cutting tools and machining tasks—from fine finishing to heavy roughing.
Complementing its turning capabilities, the tailstock features a quill diameter of φ75mm, a quill travel of 100mm, and an MT-5 taper, providing stable support for elongated workpieces. This design is critical for maintaining dimensional accuracy in extended machining operations, such as deep-hole boring or threading.
Powered by an 11KW spindle motor, the lathe operates with a total power consumption of 16KW, striking an optimal balance between high-performance machining and energy efficiency. It includes a 160L coolant tank to ensure effective heat dissipation during prolonged operations, preserving tool life and workpiece integrity.
Physically, the lathe measures 1750mm in height, with a footprint of 2605×1600mm and an overall weight of 3500KG—structurally robust while maintaining a footprint suitable for integration into various workshop configurations.
Notably, a range of optional configurations extends its adaptability: including GSK/SYNTEC control systems, gantry robots/mechanical arms, tailstock centers, high-pressure coolant systems (30/50Bar), bar feeders, parts catchers, 18.5KW electric spindles, automatic safety doors, and 10-inch hollow chucks—enabling customization to meet specialized production demands across industries.
