Product Overview

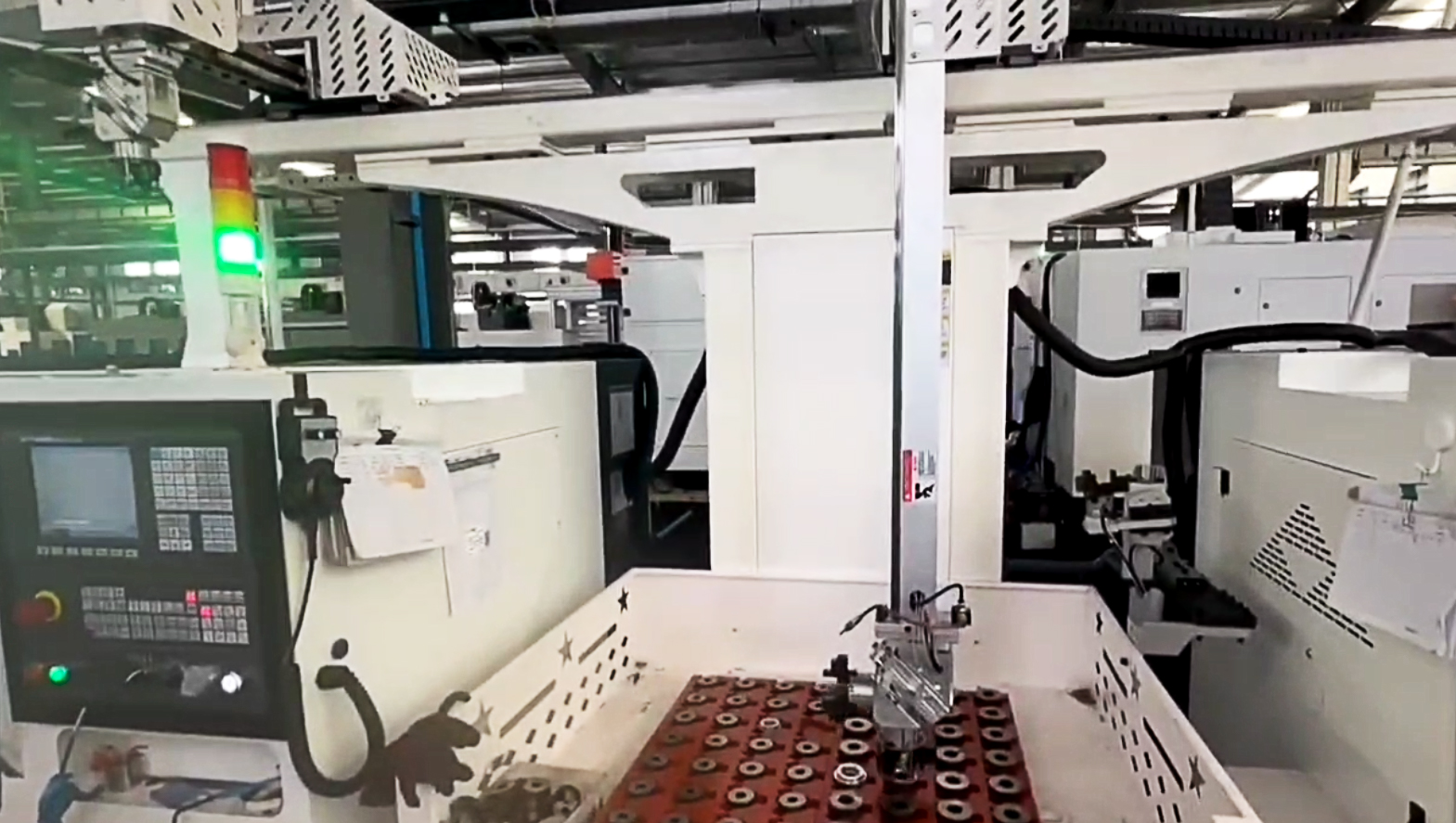

The truss-type manipulator ( one-to-two configuration) offers customized magazines that can be flexibly selected based on different workpiece types (such as gear shafts, valve sleeves, pistons, input shafts, etc.). Operators only need to place blank workpieces into the magazine to start the automated process.The gripper adopts a combined design of finger cylinders and rotary cylinders, meeting the dual requirements of part gripping and internal tool change in the machine tool. Additionally, the entire machine utilizes encapsulation technology, with the magazine and manipulator integrated for production, transportation, installation, and commissioning. This results in short on-site commissioning time at the customer's facility, enabling rapid put-into-production.
Key Features

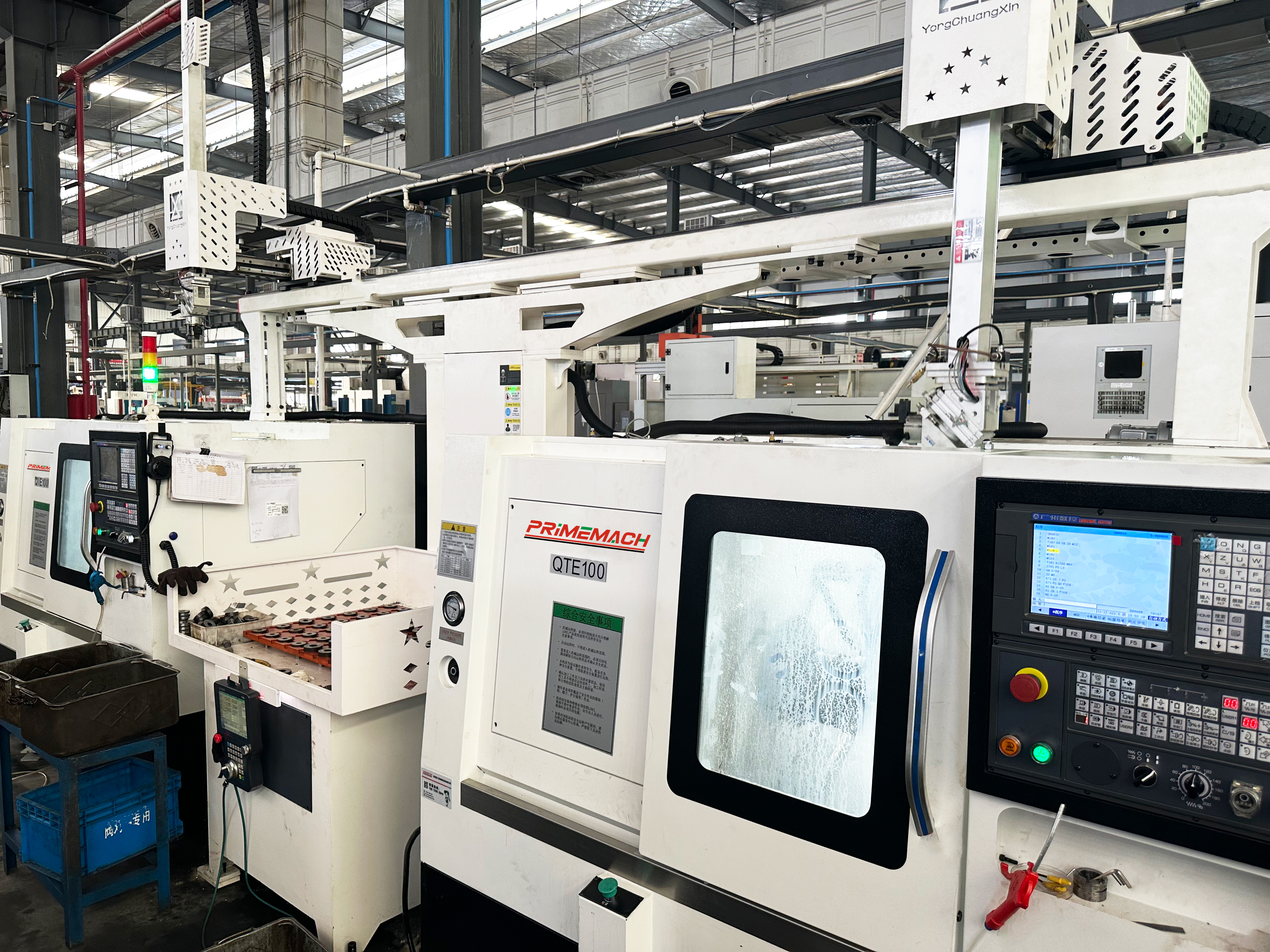

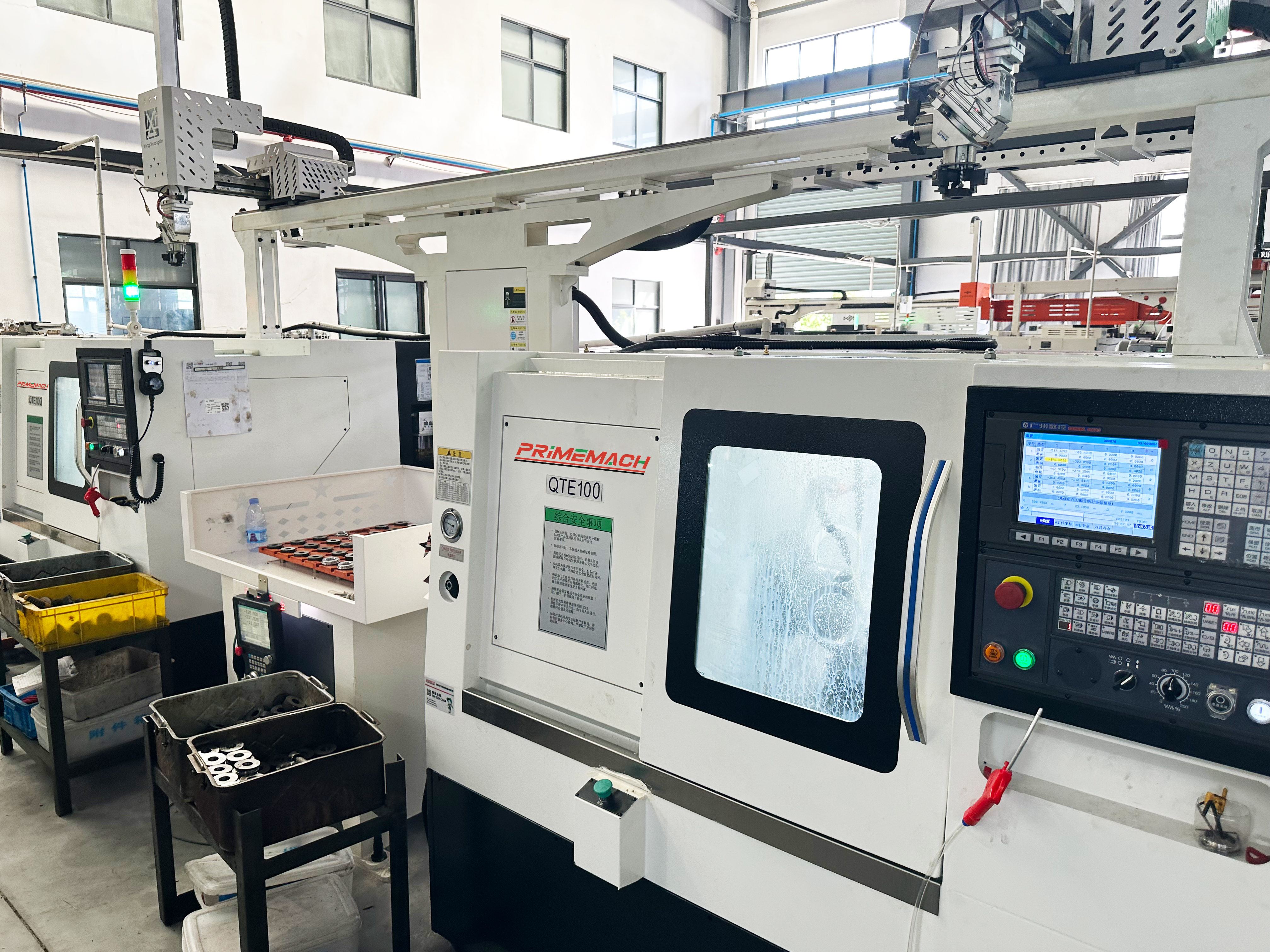

Dual-Machine Collaboration for Efficient Adaptation to Two Lathes

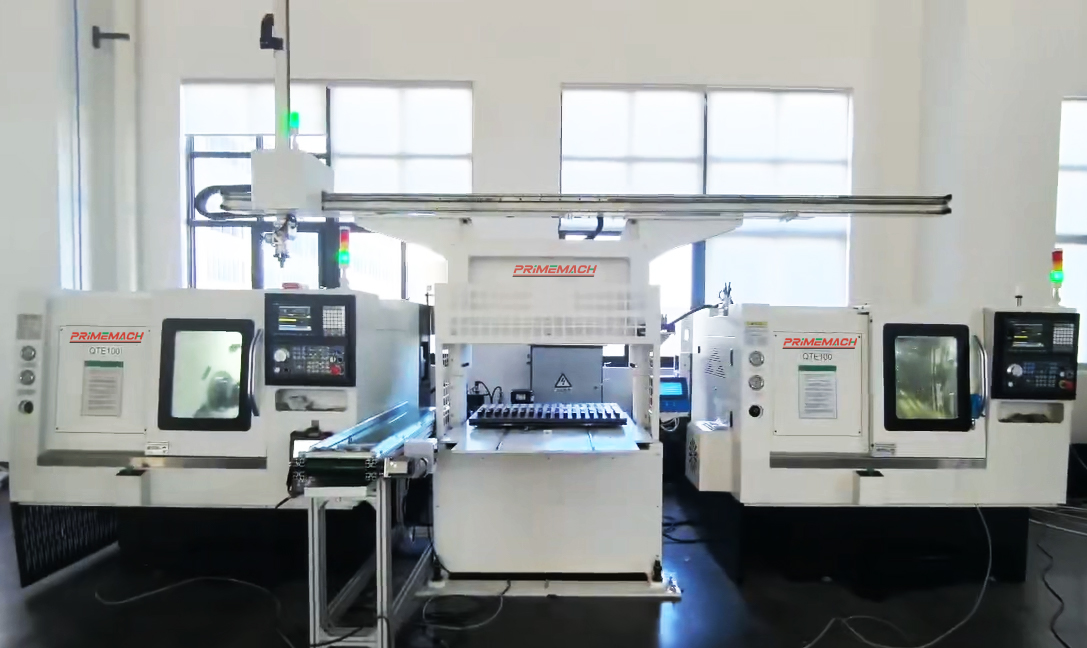

Designed specifically for synchronous automatic loading and unloading of two CNC lathes, it adopts a "one manipulator corresponding to two machine tools" configuration to realize dual-station collaborative operation. Without additional equipment investment, it can simultaneously meet the continuous processing needs of two lathes, significantly improving the capacity density of the entire production line and adapting to the efficient operation requirements in mass production scenarios.
Stable Structure with Accurate and Reliable Positioning
It adopts a split design from the lathes. The main beam is equipped with a servo motor-driven gear rack + dual guide rail mechanism, combined with an AC servo motor, high-precision gear rack and high-precision linear guide, achieving a repeat positioning accuracy of ±0.05mm. The entire machine is fixed on the lathes and integrated with them, balancing the stability of dual-station switching and the accuracy of loading/unloading, and avoiding positioning deviations caused by station switching.
